Introduction

In modern entertainment production, stage lighting is no longer just about illumination. It is a complex system of moving heads, LEDs, drivers, motors, lenses, control software, and network communication protocols. For technicians, understanding stage lighting maintenance, stage lighting repair, and stage lighting troubleshooting is essential to ensure reliability during live events where failure is not an option.

A single lighting failure in a concert, theater show, or touring production can disrupt the entire visual design and even affect audience experience. That is why professional technicians treat lighting fixtures not as disposable tools, but as precision instruments requiring regular care, diagnosis, and software management.

This guide provides a practical, easy-to-understand framework for maintaining and repairing stage lighting equipment, focusing on three core areas:

1. Preventive maintenance routines

2. Core component troubleshooting and repair

3. Firmware and software updates

1. Preventive Maintenance: The Foundation of Reliable Lighting Systems

Preventive maintenance is the most important part of stage lighting care. Most failures do not happen suddenly—they develop over time due to dust buildup, heat stress, vibration, or loose connections.

1.1 Cleaning System (Fans, Lenses, and Housing)

Dust is the number one enemy of stage lighting systems.

Checklist for cleaning:

• Clean cooling fans every 2–4 weeks (depending on usage environment)

• Remove dust from air vents using compressed air

• Clean optical lenses using microfiber cloth and lens-safe solution

• Inspect reflector surfaces for haze or discoloration

• Ensure no fog fluid residue or oil contamination exists

Why it matters:
Blocked airflow leads to overheating, which reduces LED lifespan and may trigger thermal shutdown.

1.2 Electrical Connection Inspection

Loose or oxidized connectors are a common cause of flickering or signal loss.

Checklist:

• Inspect DMX IN/OUT ports for bent pins

• Check power connectors (especially locking power cables)

• Ensure all cables are strain-free and properly supported

• Test signal continuity for long cable runs

• Replace worn-out connectors immediately

Pro tip:
Use dielectric grease on outdoor connectors to prevent corrosion.

1.3 Mechanical Structure Check

Moving head fixtures rely on motors and gears.

Checklist:

• Listen for abnormal motor noise during pan/tilt movement

• Check belt tension or gear alignment

• Inspect screws and mounting brackets

• Verify smooth rotation without jitter

Ignoring mechanical wear often leads to sudden motor failure during shows.

1.4 Environmental Control

Lighting systems perform differently depending on environment.

• Indoor shows: dust accumulation is primary concern

• Outdoor shows: moisture, rain, and temperature variation

• Touring rigs: vibration and transport damage

Always store fixtures in dry, temperature-controlled environments when not in use.

2. Core Component Repair and Troubleshooting

Even with proper maintenance, failures still happen. This section explains how to diagnose common issues in stage lighting repair.

2.1 LED Dimming or LED Decay

Symptoms:

• Uneven brightness

• Color shift (especially white balance drift)

• Reduced output compared to other fixtures

Possible causes:

• LED chip aging

• Driver board failure

• Overheating due to poor cooling

• Voltage instability

Diagnostic steps:

1. Compare output with a known good fixture

2. Check driver current output using a multimeter

3. Inspect thermal paste and heat sink condition

4. Test LED segments individually (if modular design)

Solution:

• Replace LED module or COB source

• Replace or recalibrate driver board

• Improve cooling system airflow

2.2 Motor Failure (Pan/Tilt Issues)

Symptoms:

• Fixture not moving

• Jerky or delayed motion

• Position errors or calibration failure

Possible causes:

• Damaged stepper motor

• Broken belt or gear

• Encoder failure

• Mainboard communication error

Diagnostic steps:

1. Run built-in self-test mode

2. Listen for motor response (silent motor = electrical failure)

3. Check belt tension and physical obstruction

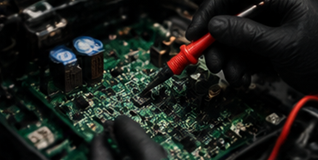

4. Inspect motor driver IC on PCB

Solution:

• Replace stepper motor or belt

• Recalibrate position system

• Replace motor driver circuit if necessary

2.3 Power or Signal Failure

Symptoms:

• Fixture not powering on

• Flickering lights

• DMX signal loss

Diagnostic steps:

• Check fuse and power supply unit

• Test with alternative power cable

• Bypass DMX chain to isolate issue

• Inspect PCB for burnt components

Solution:

• Replace PSU or fuse

• Repair DMX board

• Re-solder damaged joints

3. Software Updates and Firmware Maintenance

Modern stage lighting is controlled by embedded firmware. Keeping software updated is critical for stability.

3.1 Why Firmware Updates Matter

Firmware updates can:

• Fix DMX protocol bugs

• Improve motor calibration accuracy

• Enhance color mixing algorithms

• Increase fixture compatibility with controllers

3.2 How to Update Stage Lighting Firmware

Step-by-step process:

1. Download official firmware from manufacturer website

2. Connect fixture via USB or DMX interface tool

3. Enter update mode (usually via menu + power cycle)

4. Upload firmware using recommended software tool

5. Wait for completion—do not disconnect power

6. Restart fixture and reset factory settings if needed

3.3 Common Update Mistakes

• Interrupting power during update

• Using incorrect firmware version

• Skipping reset after update

• Updating multiple fixtures simultaneously without testing

3.4 Best Practices

• Always back up fixture settings before update

• Update one unit first as a test

• Perform full system check after firmware upgrade

• Maintain firmware version logs for rental fleets

4. Troubleshooting Workflow for Technicians

A professional technician follows a structured logic:

1. Identify symptom

2. Isolate subsystem (power / signal / optics / mechanics)

3. Test component individually

4. Replace or repair faulty part

5. Verify full system integration

This systematic approach reduces downtime and prevents unnecessary part replacement.

5. Preventive Maintenance Schedule (Recommended)

• Daily: Quick visual inspection before show

• Weekly: Clean exterior and check cables

• Monthly: Deep clean fans and lenses

• Quarterly: Electrical and firmware inspection

• Yearly: Full teardown maintenance

Conclusion

Effective stage lighting maintenance, stage lighting repair, and stage lighting troubleshooting are essential skills for every lighting technician. With proper preventive care, systematic diagnostics, and regular firmware updates, stage lighting systems can operate reliably for years in demanding live environments.
