An animation laser light is a modern stage lighting device that uses laser beams controlled by digital systems to project moving graphics, patterns, text, and dynamic visual effects. Unlike traditional static laser lights that only emit simple beams or dots, animation laser lights can create complex, structured, and programmable visuals such as waves, tunnels, abstract shapes, logos, and synchronized motion graphics.

These lights are widely used in concerts, nightclubs, festivals, architectural projection, advertising shows, and themed entertainment environments. Their core advantage lies in the ability to combine high-speed laser scanning technology with intelligent control systems such as DMX512, sound activation, and pre-programmed animation files.

To understand animation laser lights deeply, we need to explore their working principle, internal structure, control modes, safety standards, and real-world applications.

1. The Evolution of Laser Lighting Technology

Laser lighting started with simple monochrome beam projectors used mainly for scientific or military purposes. Over time, entertainment industries adopted laser systems for visual effects. Early laser systems were limited to static beams or simple geometric scanning.

With advancements in galvanometer scanning systems and digital control boards, laser lighting evolved into programmable animation laser systems. These systems can now generate:

• Moving graphic patterns

• 2D/3D visual effects

• Logo projections

• Text animation

• Rhythm-synced effects

The introduction of DMX512 control protocols further enhanced flexibility, allowing lighting designers to integrate laser lights into full stage lighting systems.

Today’s animation laser lights, such as modern DMX 16-channel systems, are capable of extremely precise control over movement, color, speed, and pattern transitions.

2. How Animation Laser Lights Work

Animation laser lights operate based on three core components:

2.1 Laser Source

The laser diode generates high-intensity light beams. Common wavelengths include red, green, blue, and full RGB combinations. The beam is coherent, meaning it maintains direction and intensity over long distances.

2.2 Scanning System (Galvo System)

The scanning system is the heart of animation projection. It uses two high-speed mirrors controlled by galvanometers:

• X-axis mirror (horizontal movement)

• Y-axis mirror (vertical movement)

By precisely controlling the angles, the system can draw shapes at extremely high speed, forming images that appear continuous to the human eye.

2.3 Control System

The control system interprets DMX signals or internal programs to determine:

• Pattern selection

• Motion speed

• Color changes

• Rotation and scaling

• Animation sequences

This is where intelligence is introduced into laser lighting.

3. Types of Animation Laser Effects

Animation laser lights can generate a wide variety of visual outputs:

3.1 Geometric Patterns

Circles, triangles, grids, spirals, and waveforms.

3.2 Organic Motion Effects

Fluid-like motion, fire-like animation, and ripple transitions.

3.3 3D Tunnel Effects

Illusion of depth and movement through space.

3.4 Logo Projection

Custom branding and corporate identity display.

3.5 Sound-Responsive Effects

Lights react to music beats and frequencies.

4. Applications of Animation Laser Lights

Animation laser lights are used across multiple industries:

4.1 Concerts and Live Shows

Used to enhance stage atmosphere and synchronize with music.

4.2 Nightclubs and Entertainment Venues

Create immersive dance environments.

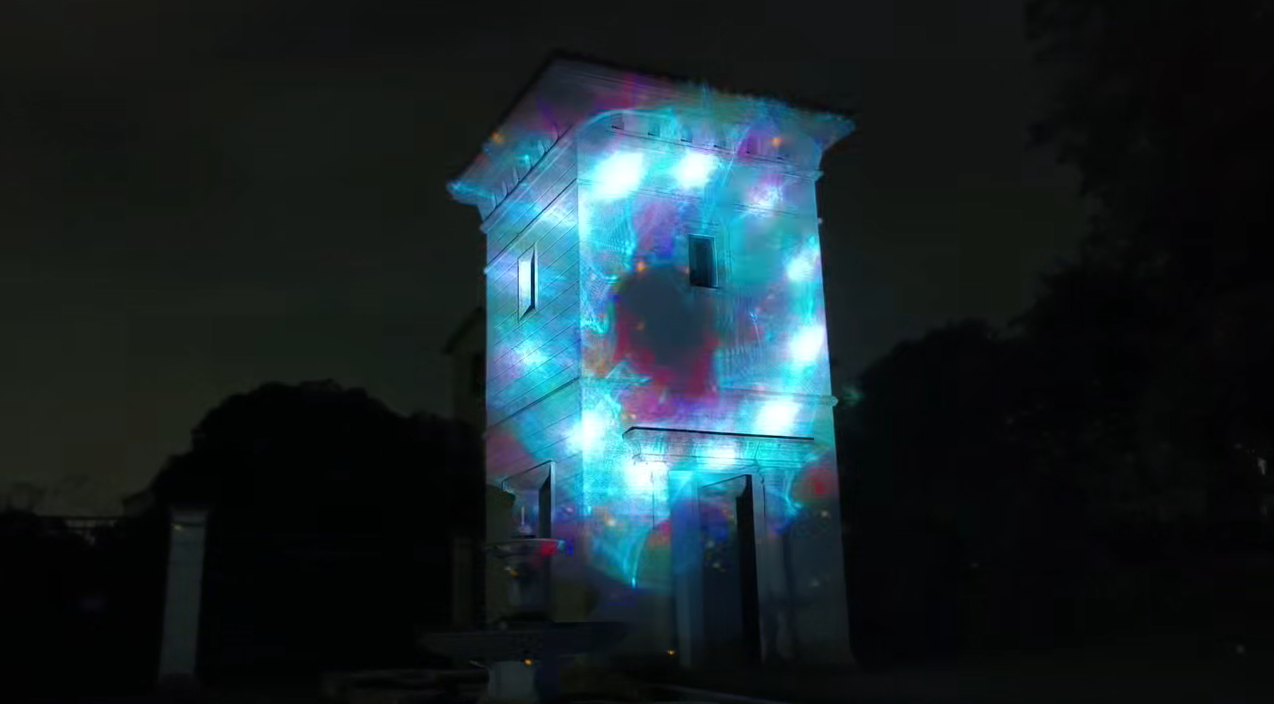

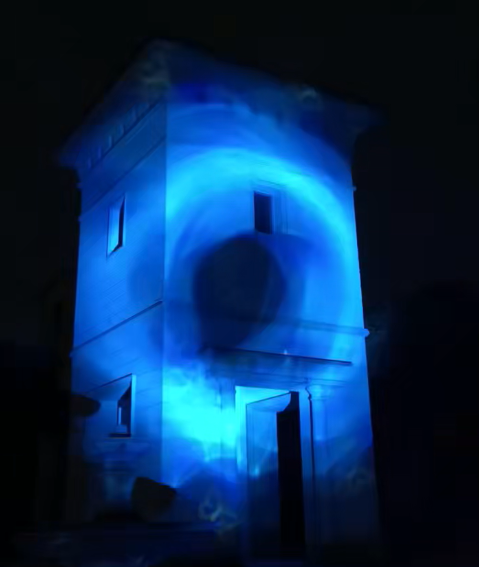

4.3 Outdoor Architecture Projection

Buildings and landmarks become projection surfaces.

4.4 Advertising and Branding

Dynamic logo projection increases visibility.

4.5 Themed Events and Festivals

Used in festivals, weddings, and exhibitions.

5. Safety Considerations

According to EN60825-1:2007 standards, many animation laser systems fall under CLASS 3B.

Important safety notes include:

• Direct eye exposure must be avoided

• Skin exposure should be minimized

• Beam scanning speed reduces direct exposure risk

• Operators must follow local laser safety regulations

Even though animation lasers appear safe due to rapid scanning, improper use can still cause harm.

6. Advantages of Animation Laser Lights

6.1 High Visual Impact

Laser beams are bright, sharp, and highly visible.

6.2 Programmability

Fully customizable patterns and animations.

6.3 Energy Efficiency

Lower power consumption compared to traditional lighting systems.

6.4 Long Projection Distance

Suitable for both indoor and outdoor large-scale events.

6.5 Integration Capability

Compatible with DMX controllers, sound systems, and lighting consoles.

7. Future Development of Animation Laser Technology

Future animation laser systems will likely include:

• AI-driven pattern generation

• Real-time motion tracking

• 3D holographic integration

• Wireless DMX control systems

• Higher resolution scanning engines

These advancements will further expand creative possibilities in entertainment lighting.
