Introduction: The Shift From Simple Lighting to Intelligent Visual Engineering

In the past, stage lighting was mainly used for basic illumination and mood enhancement. Today, however, lighting has evolved into a form of visual engineering that shapes atmosphere, depth, and audience perception in real time.

Modern entertainment venues demand fixtures that can do far more than simply emit light. They require systems capable of beam shaping, dynamic color mixing, pattern projection, and spatial movement control.

This evolution has led to a new generation of professional moving head lighting systems that integrate multiple optical technologies into a single unit.

The Core Technology Behind Modern Stage Lighting Systems

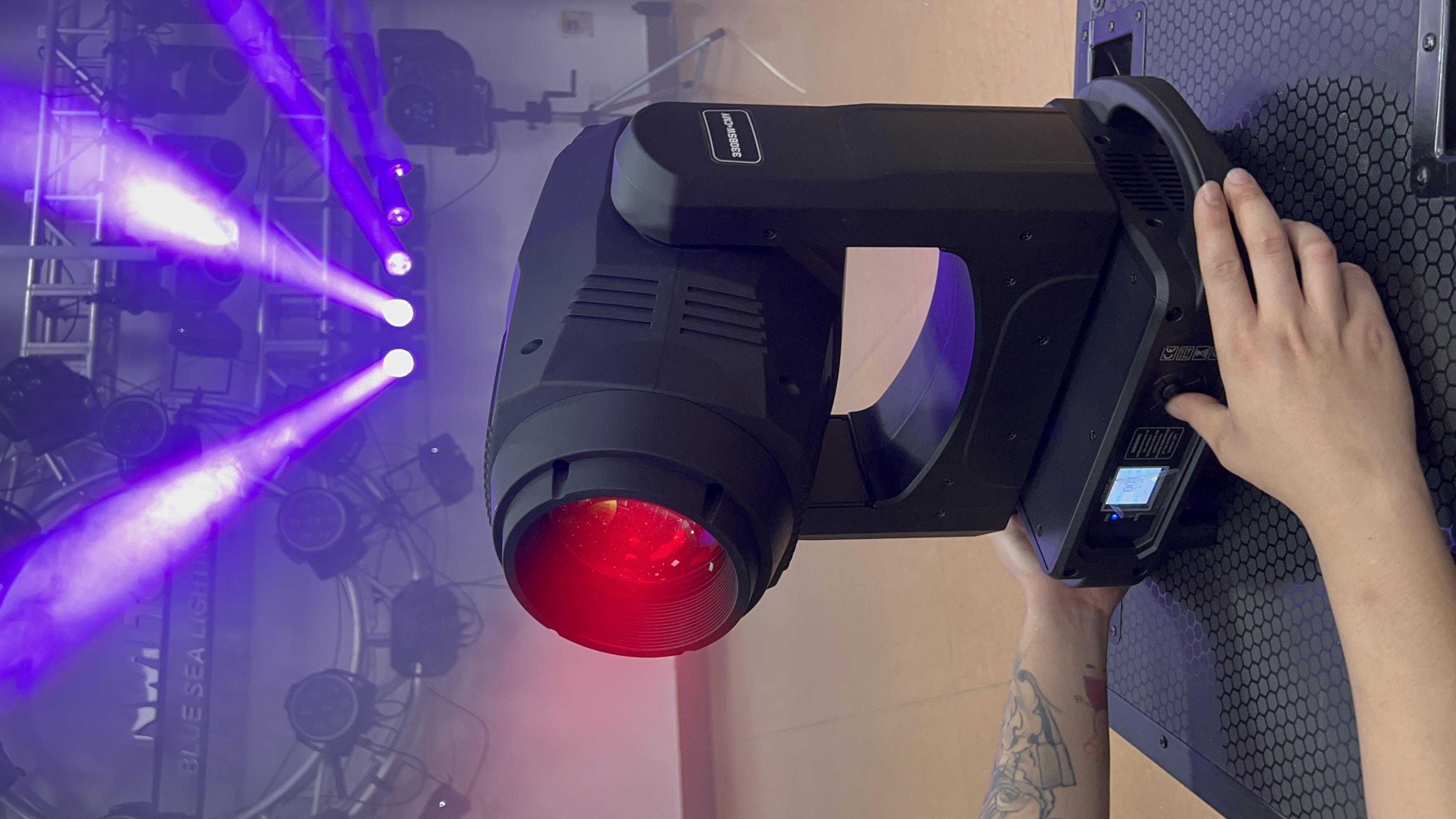

At the heart of advanced moving head lighting is a powerful 330W LED optical engine, designed to deliver high brightness output while maintaining long operational life.

According to technical specifications, the light source is capable of operating up to 20,000 hours, making it suitable for long-term professional installations and touring productions.

The system operates with a total rated power of 360W, balancing energy efficiency with high-intensity output performance.

Precision Beam Control and Optical Performance

One of the key innovations in modern lighting systems is the ability to precisely control beam angles.

With a motorized zoom range from 3.5° to 37°, lighting designers can seamlessly switch between tight beam effects and wide wash coverage without changing fixtures.

This flexibility allows a single device to perform multiple roles:

• Sharp beam projection for concerts

• Soft wash lighting for stage backgrounds

• Dynamic transition effects for visual storytelling

Additionally, a frost diffusion system is integrated to create smoother and more natural light output when required.

Advanced Color Mixing: CMY + CTO Hybrid System

Unlike traditional RGB-based systems, modern professional lighting often uses a CMY (Cyan, Magenta, Yellow) color mixing system combined with CTO color temperature control.

This enables:

• More accurate color reproduction

• Smoother gradient transitions

• Greater flexibility in creative stage design

With 6-color plus white light configuration, designers can achieve highly detailed visual moods ranging from warm cinematic tones to high-energy concert atmospheres.

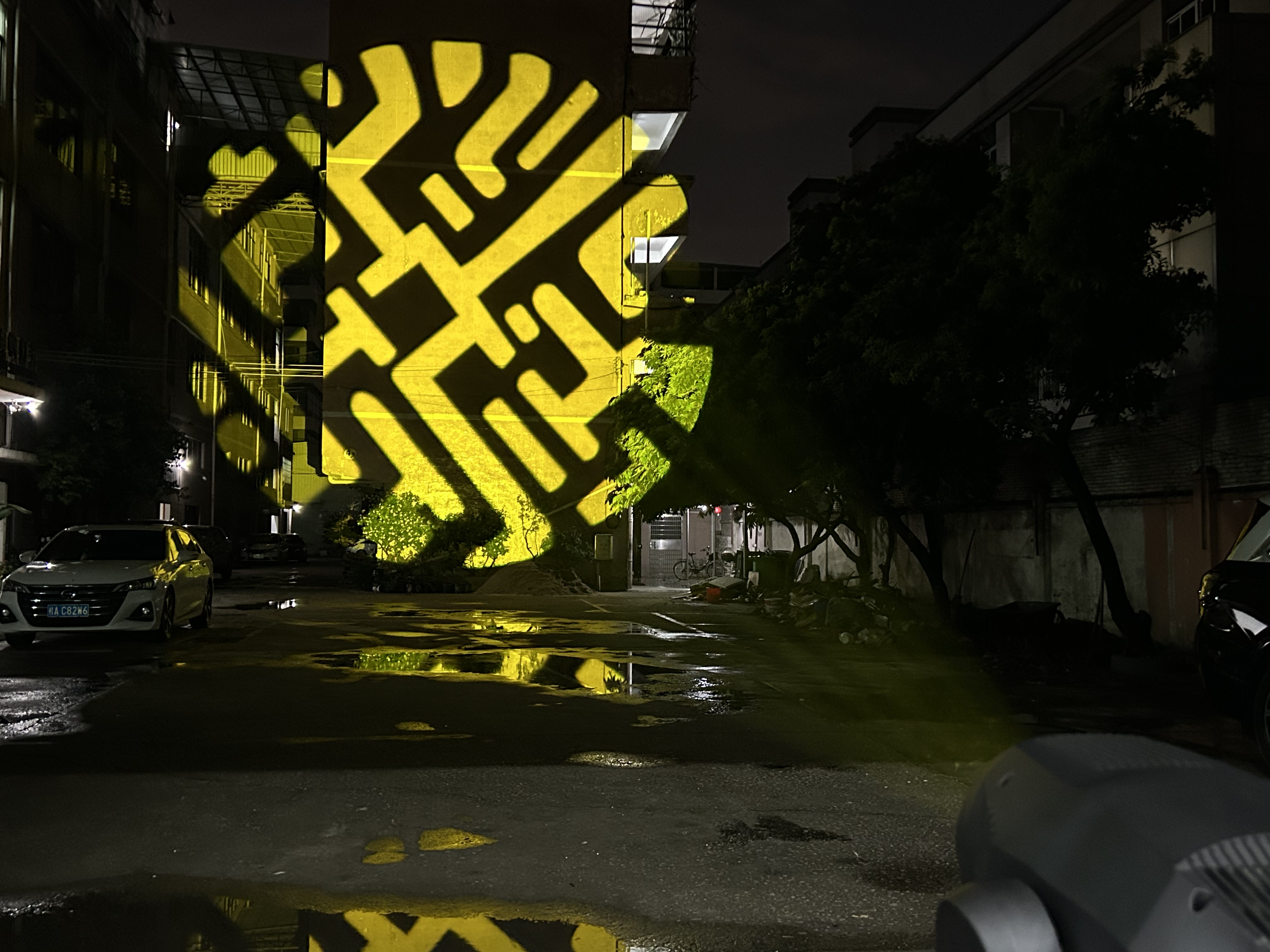

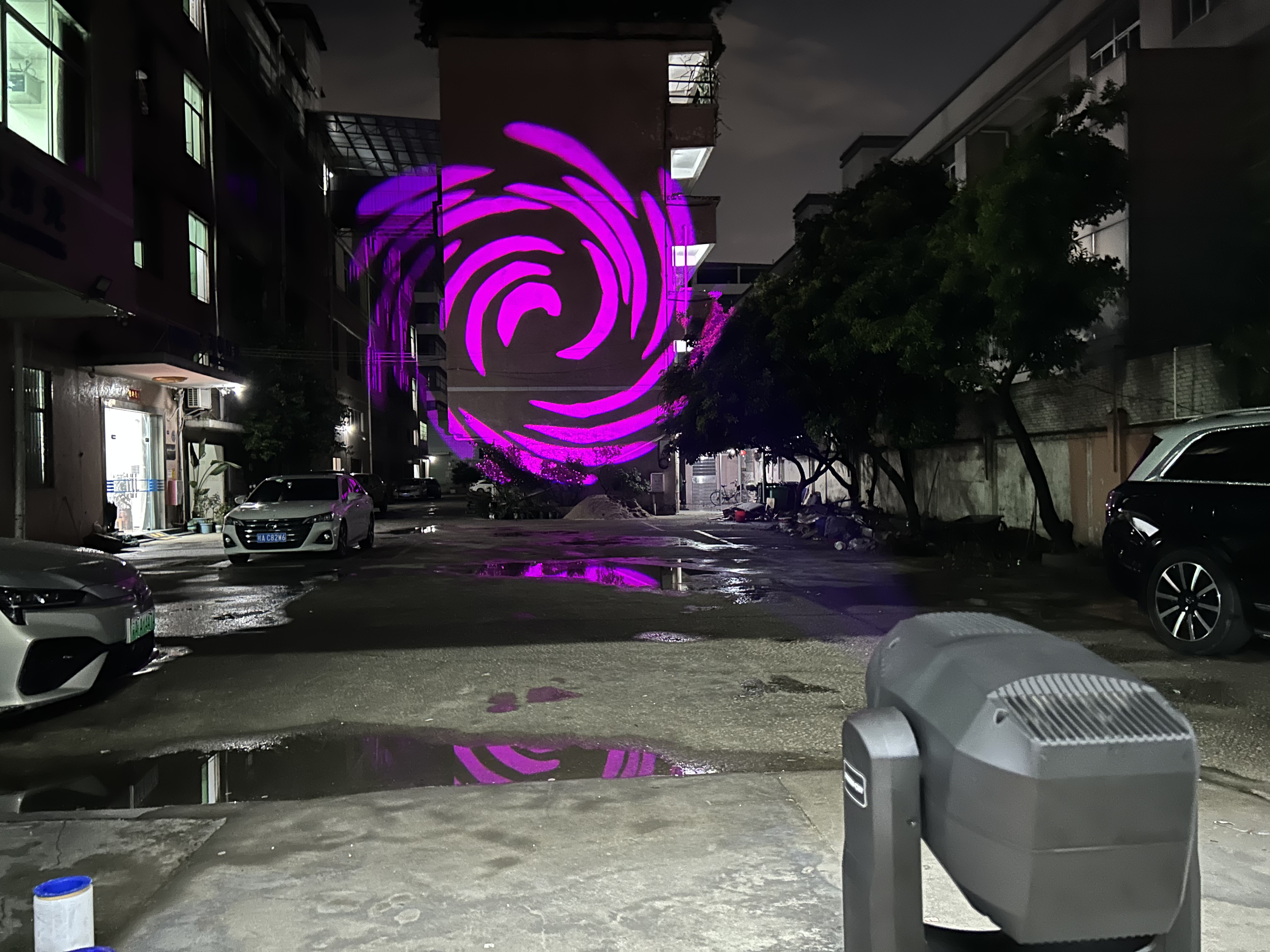

Gobo Projection: Turning Light Into Visual Graphics

One of the most powerful features in modern lighting is gobo projection technology, which allows light to project shapes, textures, and patterns.

This system includes:

• 5 fixed gobos for standard pattern effects

• 7 rotating glass gobos for dynamic motion visuals

Each rotating gobo can move independently in both forward and reverse directions, enabling complex animated lighting effects such as:

• Rotating symbols

• Moving textures

• Abstract visual storytelling patterns

This turns lighting equipment into a visual content generator rather than just an illumination tool.

Movement & Positioning: High-Precision Scanning System

Modern moving head fixtures rely on high-precision mechanical scanning systems.

This system supports:

• 540° horizontal rotation (Pan)

• 270° vertical tilt (Tilt)

• 16-bit precision control for smooth motion

Such precision allows lighting designers to execute synchronized movement patterns across multiple fixtures, creating immersive spatial choreography.

Prism Effects and Multi-Layer Beam Expansion

To enhance visual complexity, advanced lighting systems integrate a 4-facet prism system.

This allows a single beam to split into multiple layers, producing:

• Multi-directional beam patterns

• Dense atmospheric light effects

• Enhanced visual depth in fog or haze environments

Professional Control Systems and Smart Integration

Modern lighting fixtures are fully compatible with DMX512 control protocols and RDM remote management systems.

This allows:

• Remote addressing and configuration

• Software-based updates

• Multi-fixture synchronization

• Integration into large-scale stage networks

With 23/34/39 channel modes, lighting designers can choose different control depths depending on project complexity.

Durability and Engineering Design

Professional lighting systems are built for demanding environments.

Key engineering features include:

• High-temperature resistant housing

• Active cooling with axial fan system

• Operating temperature range: -20°C to 40°C

These specifications ensure stable performance in both indoor and outdoor stage applications.

Conclusion: From Light Source to Visual Intelligence System

The evolution of stage lighting is no longer just about brightness—it is about control, precision, and visual storytelling capability.

Modern integrated lighting systems combine:

• Beam shaping

• Color intelligence (CMY + CTO)

• Dynamic pattern projection

• High-speed motion control

Together, these technologies redefine how light interacts with space, transforming it into a fully programmable visual medium.
