    4ch 19pin 220V + 6ch Edison 110V 400A Camlock In/Out Power Distribution
    4ch 19pin 220V + 6ch Edison 110V 400A Camlock In/Out Power Distribution
    4ch 19pin 220V + 6ch Edison 110V 400A Camlock In/Out Power Distribution
    4ch 19pin 220V + 6ch Edison 110V 400A Camlock In/Out Power Distribution
    ❤ Add to collection

  • 4ch 19pin 220V + 6ch Edison 110V 400A Camlock In/Out Power Distribution

    • Heavy-Duty Power Handling: 400A Camlock input/output ensures stable, high-capacity performance for demanding setups

    • Real-Time Monitoring: Dedicated three-phase LCD meters for instant voltage & current visibility—no switching needed

    • Flexible Output Options: Multi-format outputs (Edison + 19-pin) to support diverse equipment configurations

    • Clear Status Indication: Individual indicator lights for each output, making operation intuitive and efficient

    • Rugged Protection Design: Double-layer anti-shock housing with reinforced hex-pattern panels for maximum durability

    • Reliable Safety Control: Premium Schneider main & branch breakers deliver dependable protection and system stability


    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

  • Heavy-Duty Power Handling: 400A Camlock input/output ensures stable, high-capacity performance for demanding setups

  • Real-Time Monitoring: Dedicated three-phase LCD meters for instant voltage & current visibility—no switching needed

  • Flexible Output Options: Multi-format outputs (Edison + 19-pin) to support diverse equipment configurations

  • Clear Status Indication: Individual indicator lights for each output, making operation intuitive and efficient

  • Rugged Protection Design: Double-layer anti-shock housing with reinforced hex-pattern panels for maximum durability

  • Reliable Safety Control: Premium Schneider main & branch breakers deliver dependable protection and system stability


Input current: 400A Camlock in and out, US standard connectors (black, red, blue, white, green)
Display: Equipped with independent three-phase A/B/C direct-reading LCD ammeter and voltmeter, allowing real-time monitoring without switching
Output: 6-way Edison 110V (cross type) + 4-way 19-pin 220V outputs, each output with indicator light

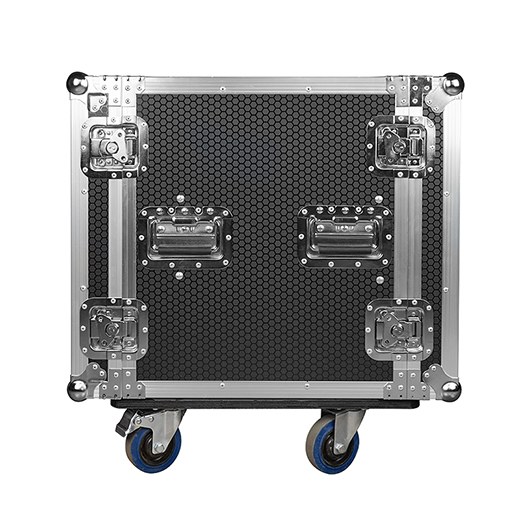

Housing: Made of refined and durable double-layer anti-shock hex-pattern panels
Control system: Main control uses 250A 3P Schneider main breaker, each output with independent Schneider branch breaker
