  • W-23 12 Road 20A Power Distribution Box with Edison Plug & 19pin Output

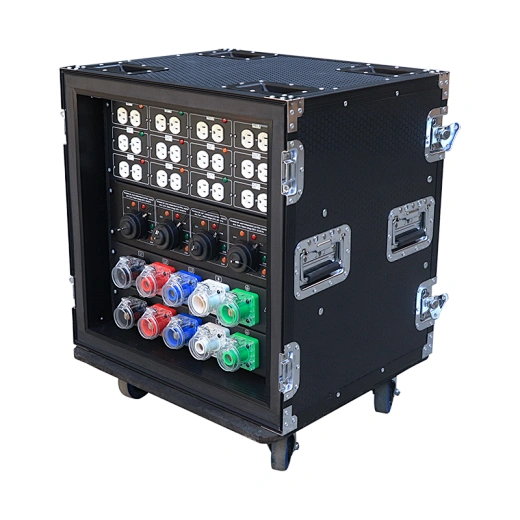

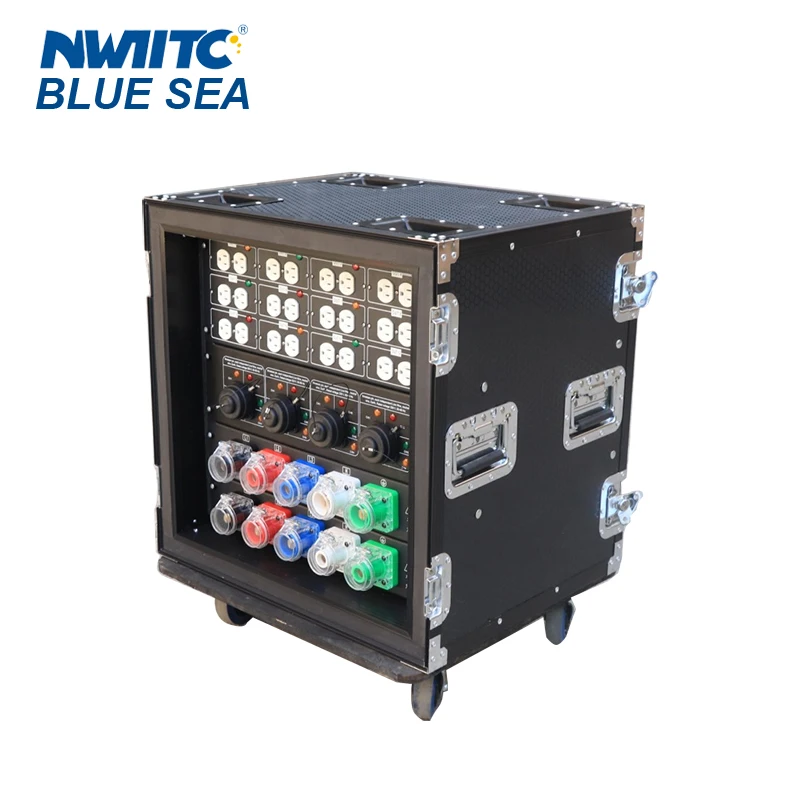

    W-23 12 Road 20A Power Distribution Box with Edison Plug & 19pin Output
    W-23 12 Road 20A Power Distribution Box with Edison Plug & 19pin Output
    W-23 12 Road 20A Power Distribution Box with Edison Plug & 19pin Output
    ❤ Add to collection

  • W-23 12 Road 20A Power Distribution Box with Edison Plug & 19pin Output

    Number of Sockets: 12

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPD1220419IC+

    Rated Voltage: three phase

    Rated Current: 250A

    Product Name: 12 road 20A American Edison plug 4 road 19pin output power distro box

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

    Input current: self-locking 400A rhino plug (IN & OUT)

    Output: 12-way US plug + 4-way 19-pin 110V output

    Product size (mm): L670xW600xH730

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Number of Sockets: 12

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD1220419IC+

Rated Voltage: three phase

Rated Current: 250A

Product Name: 12 road 20A American Edison plug 4 road 19pin output power distro box

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: self-locking 400A rhino plug (IN & OUT)

Output: 12-way US plug + 4-way 19-pin 110V output

Product size (mm): L670xW600xH730

Color: black

12 road 20A American Edison plug 4 road 19pin output power distro box

Product Description
Product name:12 road 20A American Edison plug 4 road 19pin output power distro box
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: self-locking 400A rhino plug (IN & OUT)
Display: With three-phase A.B.C direct-reading independent liquid crystal current and voltmeter display, various data can be monitored in real time without switching
Output: 12-way US plug + 4-way 19-pin 110V output, each output has an indicator light display
Body: It adopts exquisite and durable double-layer shock-proof hexagonal plate; 11U standard cabinet.
Control system: the total control adopts 200A total air switch; each independent separate air switch is C20A, with overload and short circuit double protection
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670xW600xH730



More details of our 12 road 20A American Edison plug 4 road 19pin output power distro box as below:

12 road 20A American Edison plug 4 road 19pin output power distro box
