IP65 Outdoor Protection: Built for all-weather stage environments with reliable waterproof performance
Ultra High Power Output: 1000W–1600W LED engine delivering intense, high-brightness projection
CMY + CTO Color Mixing: Smooth, full-spectrum color control with professional-grade temperature correction
Precision Framing System: 4 independently controlled blades for sharp, dynamic beam shaping
Advanced Gobo System: Dual fixed & rotating gobo wheels for rich pattern creativity and texture effects
Massive Zoom Range: 5°–50° wide zoom for tight beams to broad wash flexibility
High-Impact Beam Effects: 4-facet prism, frost, iris, and animation wheel for layered visual impact
Ultra Smooth Dimming: 0–100% linear fade with flicker-free performance for camera use
Silent High-Precision Motion: 27 ultra-quiet motors with 16-bit smooth positioning control
Full Rotation Freedom: 540° pan and 270° tilt with optional infinite Y-axis rotation
Professional Control System: DMX512 & RDM compatibility for advanced lighting integration
Rugged Premium Build: Magnesium-aluminum alloy + carbon fiber housing for strength and lightweight design
Model Specifications

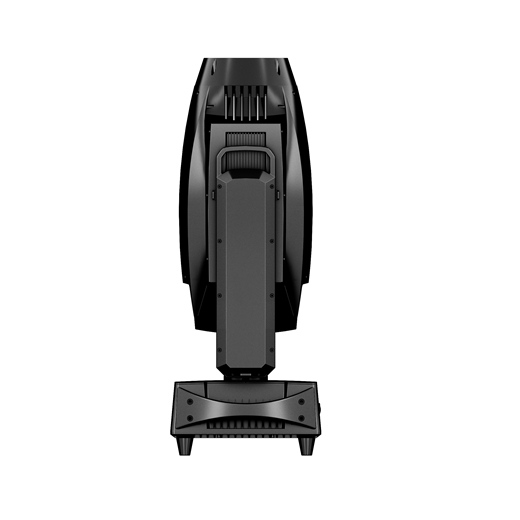

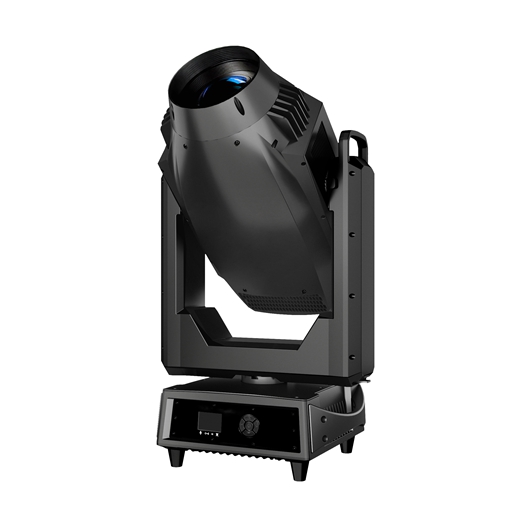

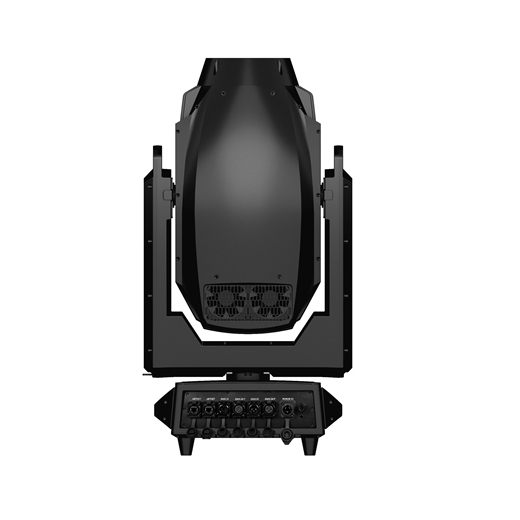

1000W CMY+CTO LED Framing Moving Head Light
Power Consumption: 1000W
Dimensions: 454 × 327 × 793 mm
Net Weight: 37kg
1200W CMY+CTO LED Framing Moving Head Light
Power Consumption: 1200W
Dimensions: 454 × 327 × 793 mm
Net Weight: 37kg
1400W CMY+CTO LED Framing Moving Head Light
Power Consumption: 1400W
Dimensions: 454.2 × 327.4 × 827.3 mm
Net Weight: 39kg
1600W CMY+CTO LED Framing Moving Head Light
Power Consumption: 1600W
Dimensions: 454.2 × 327.4 × 827.3 mm
Net Weight: 39kg
Light Source: High-Power LED White Light Module
LED Lifespan: 50,000 Hours
Color Temperature:7800K
Zoom Range:5°-50°
Color Wheel 1: 6 Colors + High CRI Filter + Open
Color Wheel 2: Independent CMY Color Mixing System + CTO Color Temperature Correction System (2800K-7100K)
Effects Wheel: Independent Effects Wheel with Linear Insertion and Continuous Rotation
Fixed Gobo Wheel: 5 Gobos + 2 Open Positions
Rotating Gobo Wheel: 6 Replaceable Glass Gobos + Open
Gobo Size: Outer Diameter 27.9mm, Inner Diameter 23mm, Thickness 1.1mm
Gobo Shake:Yes
Framing System: 4 Independently Controlled Framing Blades with Fast and Smooth Shutter Movement
Blade Control: Independent Direction and Angle Adjustment
Framing Module Rotation:±90°
Total Rotation Angle:180°
Prism: 4-Facet Rotating Prism
Iris System: Linear 5%-100% Zoom with Macro Functions and Multiple Effect Variations
Animation Wheel: Independent Animation Wheel with Linear Insertion and Infinite Rotation Effects
Frost System: Independent Light Frost and Heavy Frost Control
Focus: Linear Electronic Focus
Dimmer: 0-100% Linear Dimming
Strobe: Electronic Strobe (0.5-20 Flashes Per Second)
Optical System: High-Precision Compound Optical Lens
Motors: 27 Ultra-Quiet Motors
Three-Phase Motors:2pcs
Control Resolution: 16-Bit Precision
Pan Movement:540°
Tilt Movement:270°
Infinite Y-Axis Rotation:Optional
Display: LCD Display with Push-Button Control
Control Protocols: DMX512, RDM
DMX Channels: 39CH / 65CH
Input Voltage: AC100-240V, 50/60Hz
Housing Material: Magnesium-Aluminum Alloy + Carbon Fiber
Certifications: CE, RoHS
Protection Rating:IP65
- User name Member Level Quantity Specification Purchase Date
- Satisfaction ：
-
-
.jpg)
.jpg)
.jpg)
Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light
Ultra-Bright 1200W LED: Powerful output with long 50,000h lifespan.
5–50° Creative Zoom: Sharp beams to wide spots in one fixture.
Pro Framing System: 4 blades with full rotation for precise shaping.
Rich Color Performance: Smooth CMY + CTO for perfect tones.
HD Gobo Effects: Rotating glass gobos and 4-facet prism for stunning visuals.
Silent & Fast Movement: 3-phase motors deliver smooth, quiet operation.
Soft Light Control: Adjustable edge for cinematic looks.
Rugged Build: Aluminum + V0 flame-retardant housing for extreme durability.
DMX + RDM Ready: Fully compatible with professional control systems.
￥0.00￥0.00 -
.jpg)
.jpg)
.jpg)
Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO
800W LED Power: Bright, stable output
4-in-1 Function: Beam · Spot · Wash · Framing
Precision Framing: Clean, sharp light edges
CMY + CTO Color: Smooth mixing, accurate tones
Wide Zoom Range: From tight beam to wide wash
Dynamic Effects: Prism and effect wheel
IP65 Waterproof: Ready for outdoor shows
Magnesium Alloy Body: Strong and lightweight
Smooth Pan & Tilt: Fast, precise movement
￥0.00￥0.00 -
.jpg)
.jpg)
.jpg)
Outdoor Waterproof IP 400w CMY CTO Beam Spot Wash 3IN1 Hybrid LED Moving Head
Input voltage: AC100-240V, 50/60 Hz
Total power: 500W, power factor: 0.85
Light source: 400W LED module
Light source life: ≥50,000 hours
Color temperature: 8000K
Light output diameter: 138mm
Illuminance: 12,000Lux@15m (3°)
Zoom range: 3-30 degrees
Horizontal scanning: 540°, using advanced magneto-electric positioning system, 16-bit scanning
Vertical scanning: 270°, using advanced magneto-electric positioning system, 16-bit scanning
Color system: 1 color wheel, 8 colors
Color mixing system: CMY infinite color mixing
CTO color temperature: 3200-8000K adjustable
Fixed pattern: 1 fixed pattern wheel, 11 pattern pieces
Rotating pattern: 1 rotatable pattern piece board, 8 pluggable pattern pieces
Prism: 1 octagonal prism, 1 hexagonal prism, can be independently superimposed and rotated
Focus: Electric focus
Atomization: Independent atomization lens, light transmittance greater than 90 %
Strobe: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, voice control, RDM
Channel: 23 channels
Display: touch control interface, display temperature, light brightness
Power connection: waterproof power interface input/output
Signal connection: three-core or five-core waterproof XLR socket
Working environment: -20℃～45℃
Dimensions: 41.5*24*70.6cm
Net weight: 23kg
Casing: magnesium alloy casing, black outdoor paint
Cooling system: air cooling + die-cast magnesium alloy, full temperature monitoring, automatic over-temperature protection
Protection level: IP66￥0.00￥0.00 -
Outdoor Waterproof IP 250w/350w Beam Spot Wash 3IN1 Hybrid LED Module Moving Head Light
3-in-1 Hybrid Effect: Beam, spot & wash in one powerful unit.
Brilliant RGBW Output: 9 colors + white for dynamic lighting shows.
Outdoor Waterproof: IP65 protection for reliable all-weather performance.
Flexible Power Options: 250W & 350W versions to fit any stage.
Smooth Dimming: Precise control for seamless transitions.
Pro-Level Control: DMX512, auto, master-slave & sound activation.
Durable Structure: Sturdy aluminum + plastic housing, built to last.
Wide Applications: Perfect for clubs, stages, concerts & outdoor events.
￥0.00￥0.00
