Brilliant RGB Output: 30W full-color laser with vivid brightness.
Premium Nichia Diodes: Imported from Japan for pure color.
Wide Coverage: 60° scanning for large stages.
Dynamic Visuals: Text, beam, and animation effects.
Flexible Control: ILDA, DMX512, Sound, Auto, SD modes.
IP65 Waterproof: Perfect for outdoor events.
High-Speed Scanning: Smooth 50K precision motion.
Durable Build: Dual-sealed optics, air cooling system.
Tour-Ready Design: Rugged metal housing with flight case.
High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light Product Description
.jpg)
Product Overview
The High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light is designed for professional stage lighting, outdoor festivals, and visual installations. With 30W full-color RGB output, IP65 waterproof protection, and advanced optical precision, it delivers powerful brightness and vivid beam effects for immersive experiences. The fixture combines creative flexibility with robust engineering, ensuring long-term reliability for concerts, mapping, and architectural projection events.
High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light Application Scenarios
Blue Sea Lighting’s High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light is designed for outdoor concerts, festivals, and stage events, delivering vivid full-color laser projection, smooth animation effects, and precise beam control for professional lighting applications.
High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser LightTechnical Specifications
| parameter | Specification |
|---|---|
| Light Source Brand | Nichia (Japan) |
| Power | 30W RGB full-color laser |
| Red | 9000mW @ 638nm ×1 |
| Green | 10000mW @ 520nm ×1 |
| Blue | 11000mW @ 445nm ×1 |
| Divergence | <1.0 mrad |
| Modulation | 100k Analog / TTL |
| Scanning Angle | Max 60° |
| Scanning Speed | 50Kpps galvanometer |
| Control | ILDA / DMX512 / Auto / Sound / SD / Master-Slave |
| Software | Pangolin QuickShow |
| Cooling | Air Cooling |
| IP Rating | IP65 |
| Working Temp | -20°C~ 40°C |
| Dimensions | 56 × 42 × 23 cm |
| Net Weight | 41 kg |
| Package | Flight Case (60 × 66 × 40 cm) |
.jpg)
Light Source & Brightness
Equipped with Nichia laser diodes imported from Japan,
this fixture ensures outstanding brightness,
vivid color rendering, and extended lifetime performance.
Its 30W RGB laser system provides pure red at 638nm,
green at 520nm, and blue at 445nm, producing exceptionally
sharp beams with less than 1.0 mrad divergence.
.jpg)
Optics & Visual Effects
This laser features a dual-layer sealed optical structure that prevents dust intrusion and ensures stable projection. With a 60° wide scanning angle, it supports multiple show modes including animation, text, beam, logo, and custom effects. The precision optics create smooth animations, sharp outlines, and vibrant RGB visuals, ideal for both indoor and outdoor performances.
.jpg)

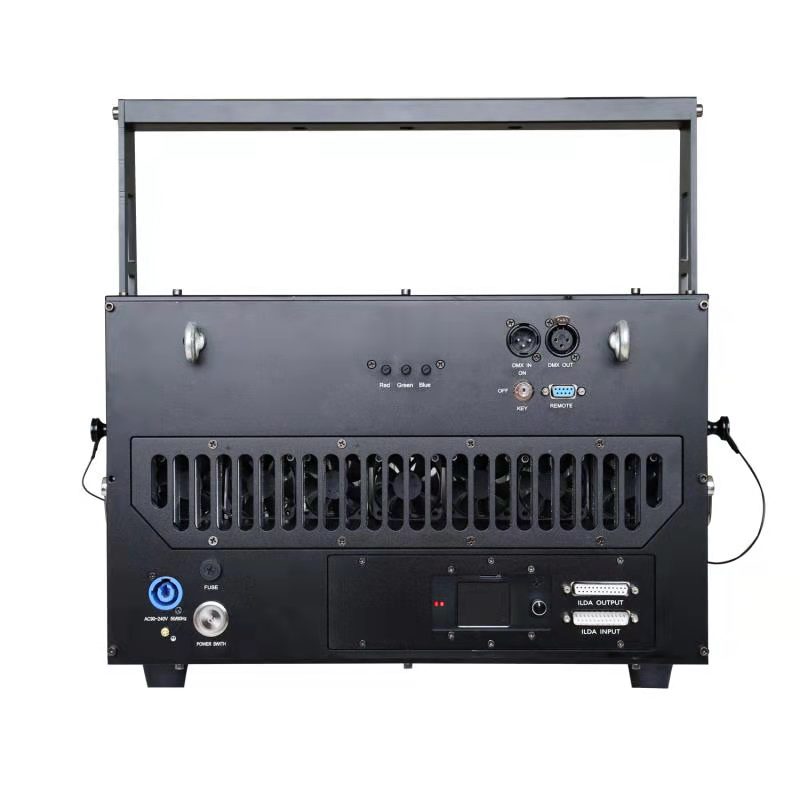

Control & Operation
The laser supports ILDA, DMX512, Auto, Sound Active,
Master-Slave, and SD Card control modes,
allowing flexible programming for different event setups.
It is fully compatible with Pangolin QuickShow software
from the USA, enabling professional synchronization
and complex laser choreography.
.jpg)
Build & Protection
The fixture features an IP65 waterproof design and a dual optical sealing structure to ensure reliable operation even in rainy or humid environments. Its durable magnesium-aluminum alloy body resists corrosion and mechanical stress. With 550W system power and an efficient air-cooling system, it maintains consistent performance and longevity under continuous outdoor use.
With 19 years of professional lighting experience, Blue Sea Lighting introduces the High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light, offering brilliant RGB output, precise scanning, and reliable performancefor concerts, outdoor shows, and stage events.
.jpg)

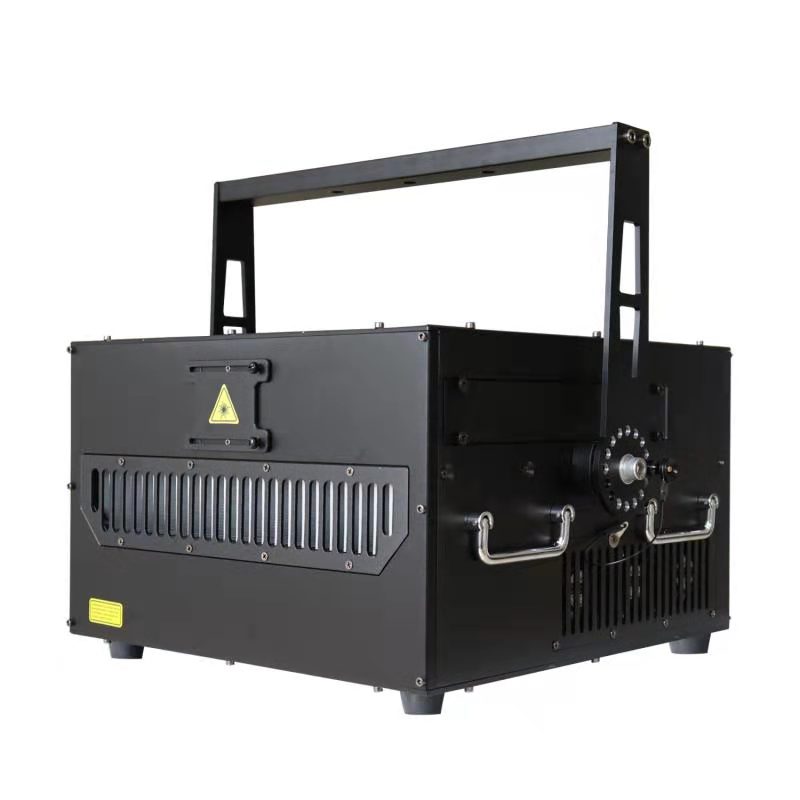

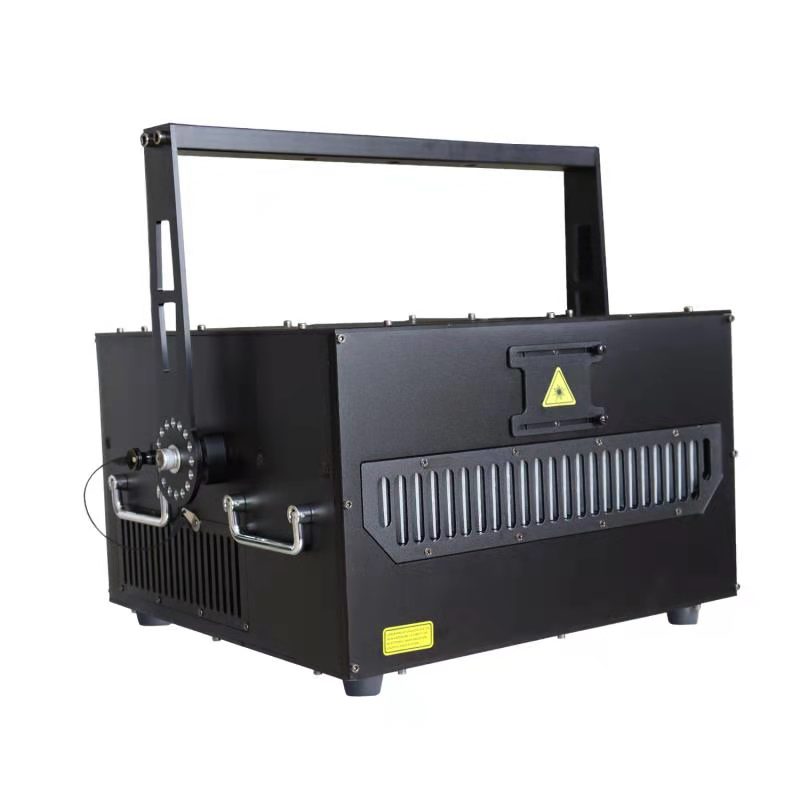

Product Display
The 30W RGB Animation Laser Light combines 100k analog
modulation and a wide 60° scanning range,
offering smooth animation rendering, accurate beam alignment,
and rich color effects. Its robust mechanical structure and elegant
industrial design ensure professional reliability and a refined
stage presence.
.jpg)

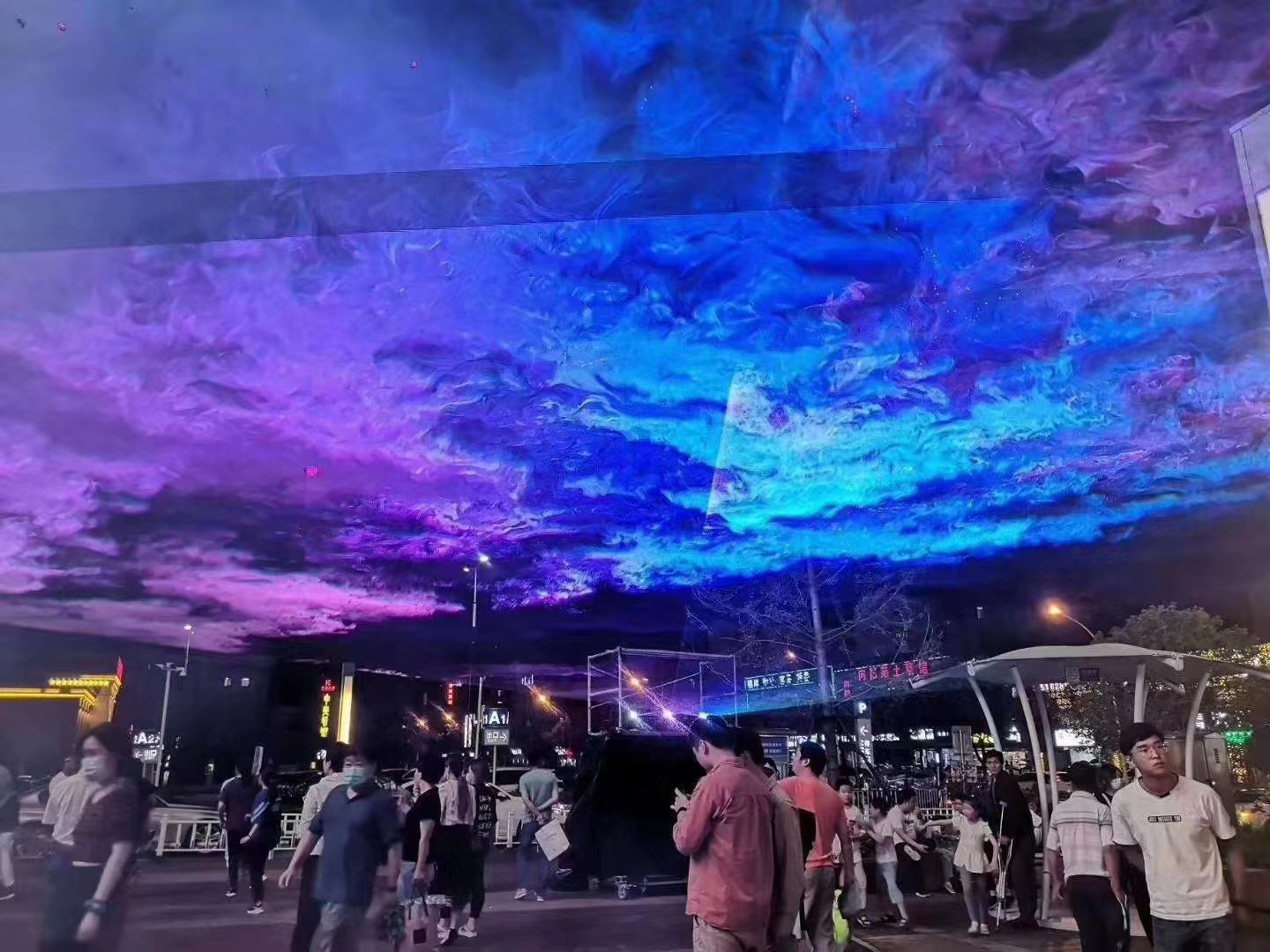

Product Effect Display
Delivering breathtaking RGB beams, this fixture creates multi-layered laser effects suitable for concerts, clubs, festivals, and immersive environments. Whether used for background animations or leading visual effects, it transforms any event into a high-energy spectacle with superior precision and color consistency.
.jpg)

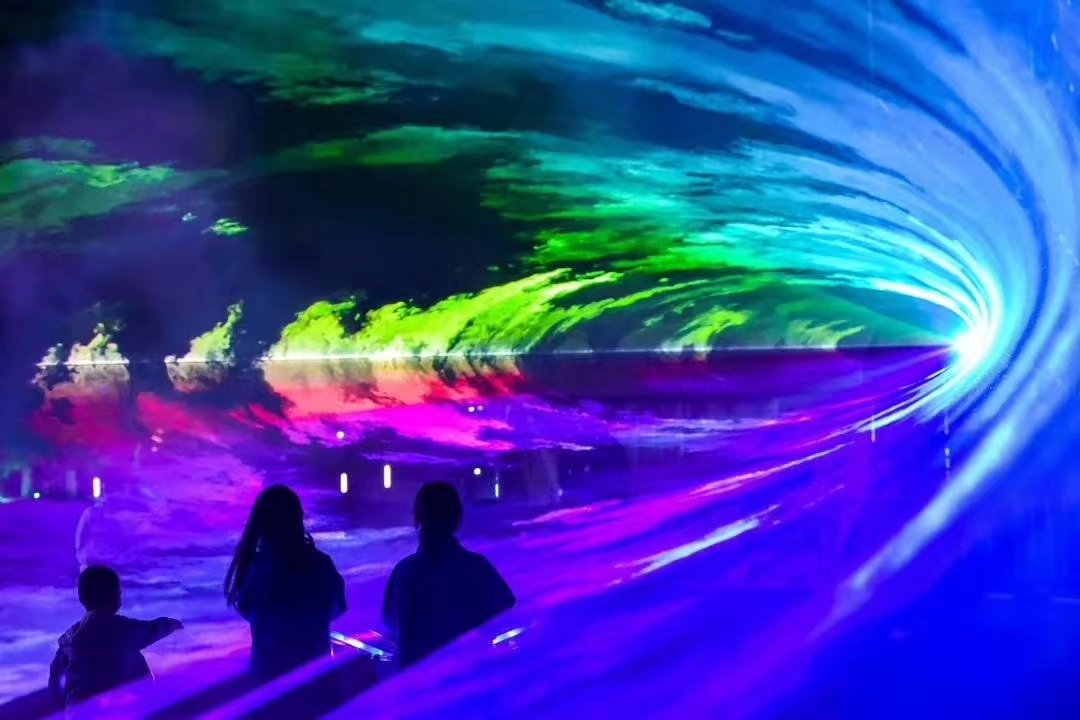

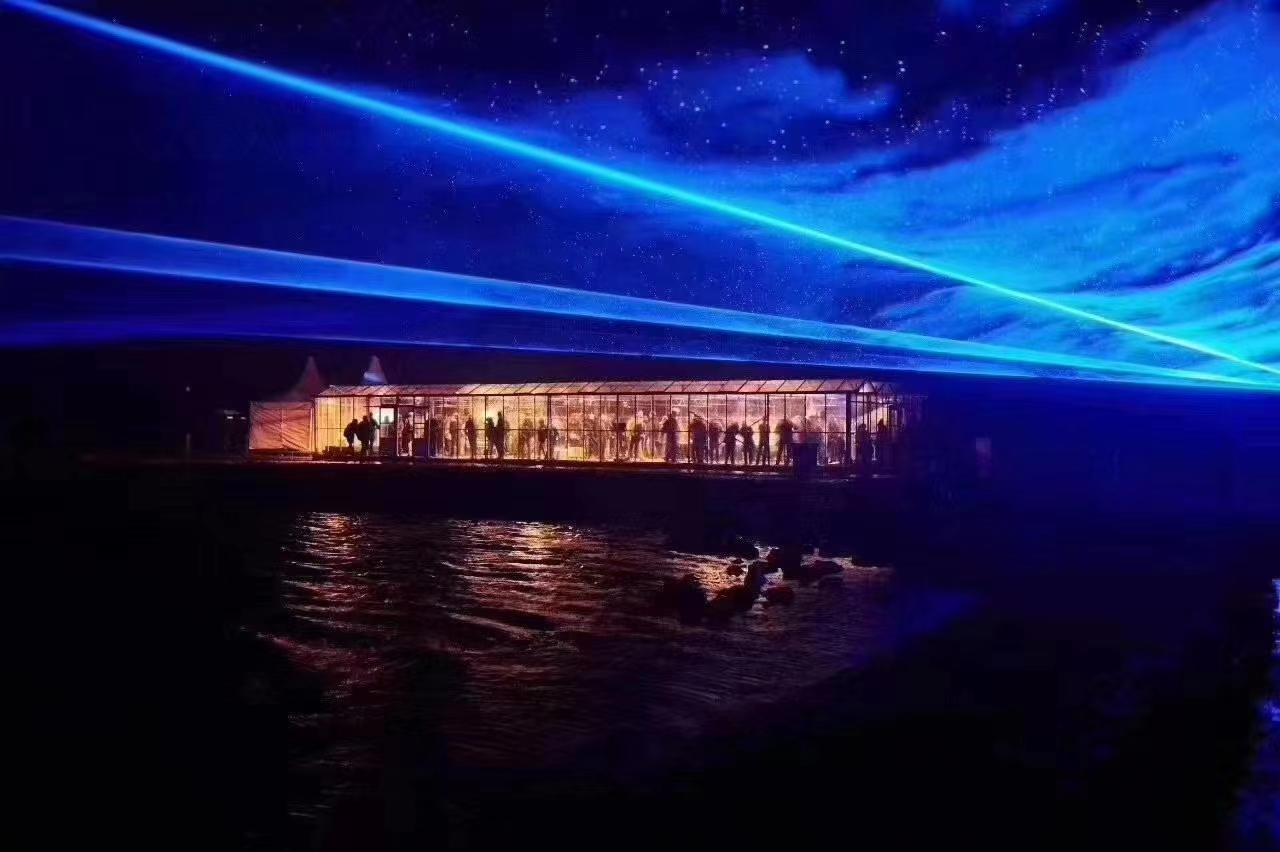

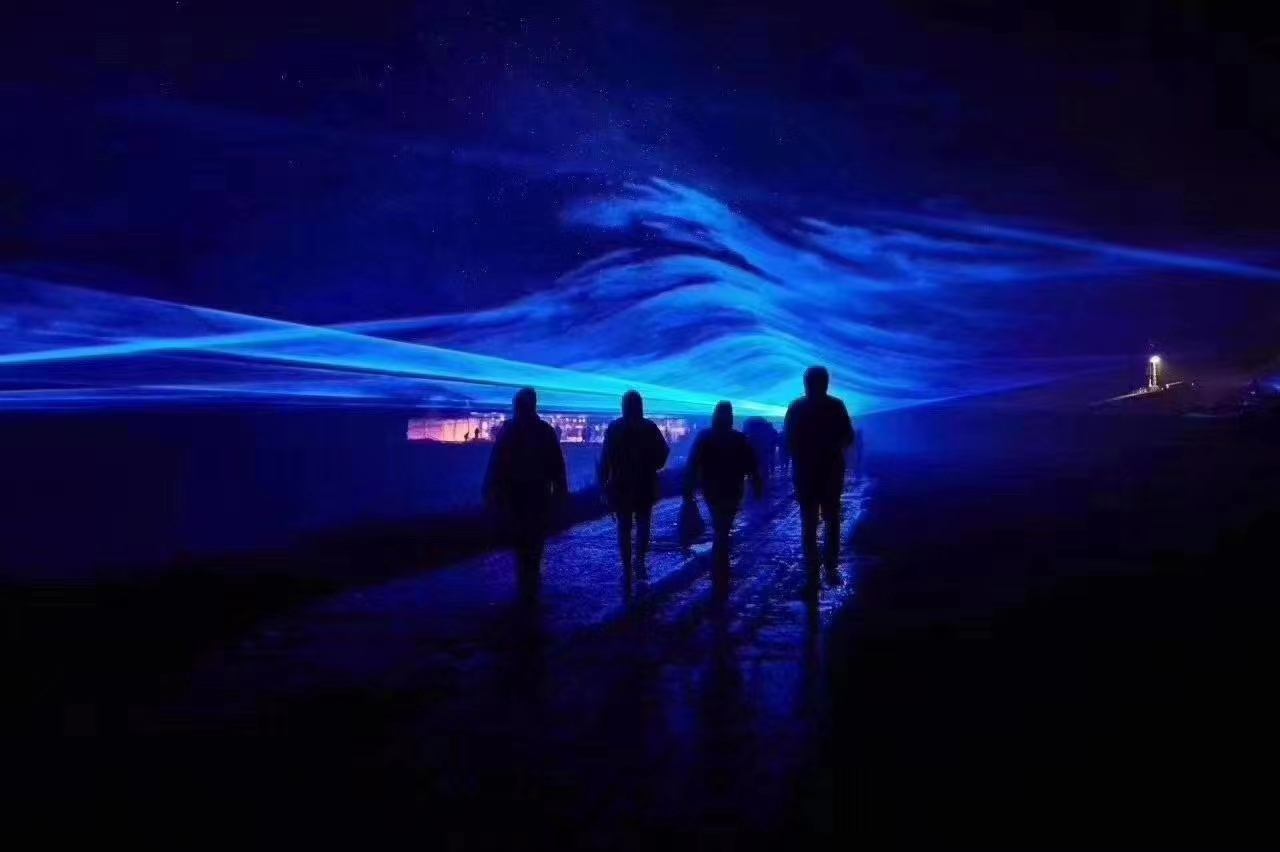

Real Application Scenes
From wedding stages to large-scale entertainment venues,
the laser’s full-color projection and precise scanning
deliver unforgettable atmospheres. Its sharp beams fill
any space with motion and intensity, providing
a professional lighting experience that captivates audiences.
.jpg)

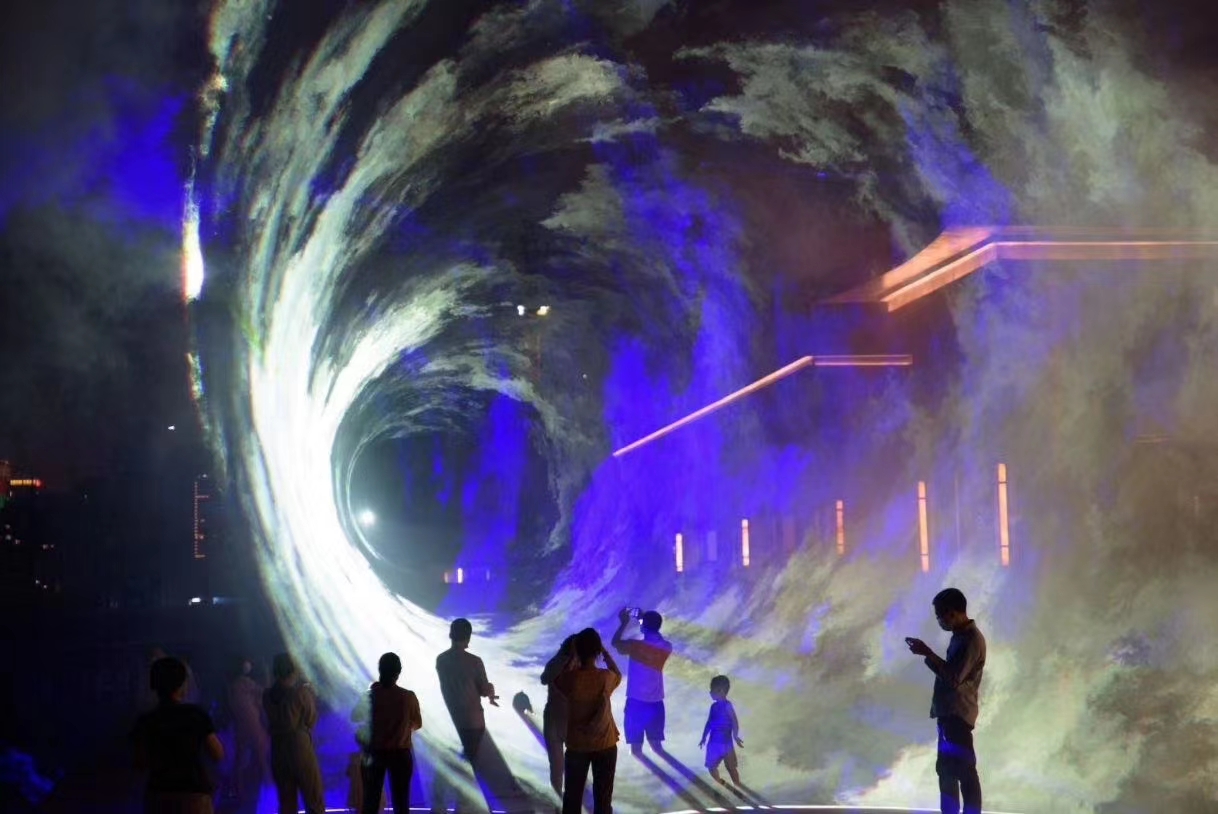

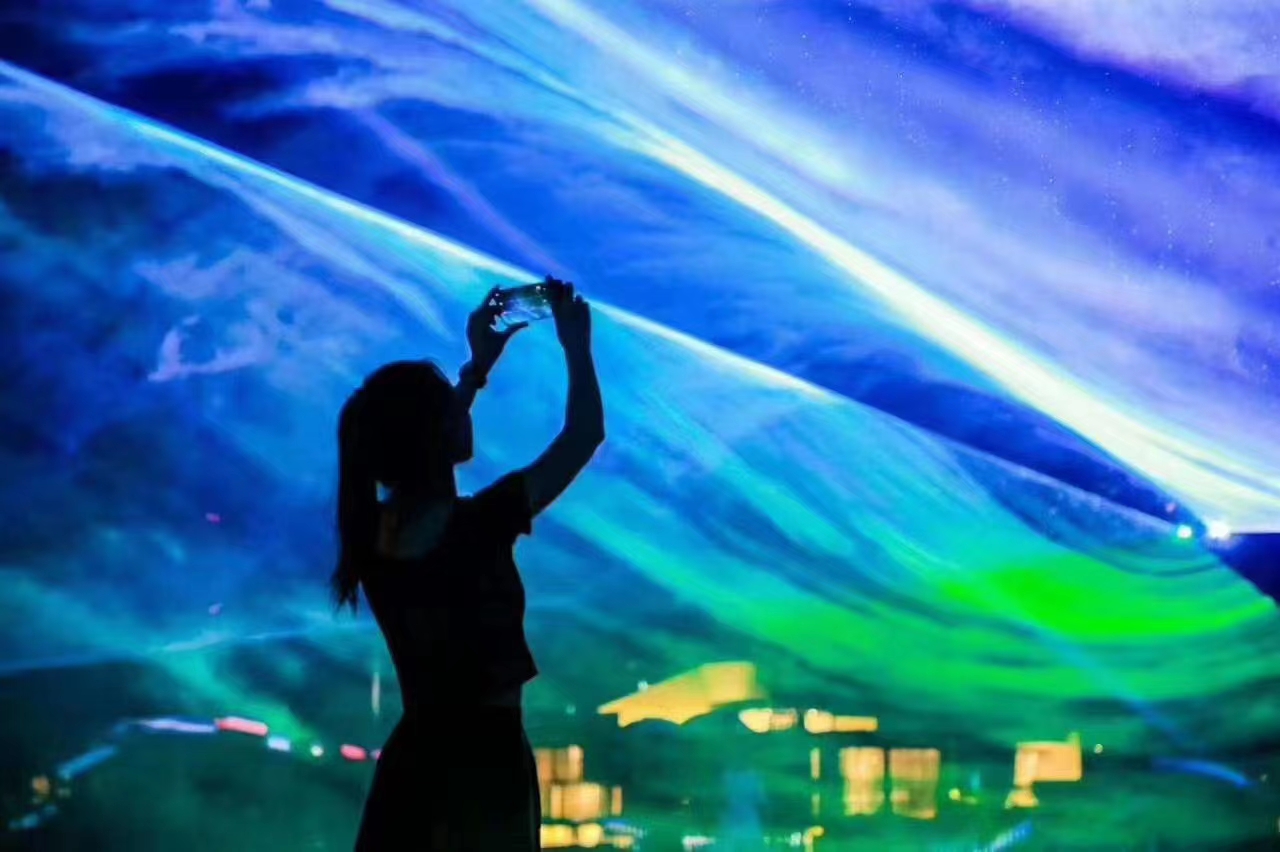

Multi-Scene Display
The High Power 30W RGB Animation Laser Light adapts perfectly to different environments including outdoor festivals, exhibitions, and private events. Its vivid RGB output and refined optical system maintain exceptional clarity even in fog or haze, ensuring a consistent and immersive visual experience across all conditions.
Professional Performance for Every Stage
The High Power Outdoor DJ Event SD 30W RGB 3in1 Animation Laser Light delivers powerful RGB brightness, precise beam control, and smooth animation effects. Ideal for concerts, festivals, and live shows, it ensures vivid colors, stable output, and professional visual performance on every stage.




Blue Sea Lighting is an enterprise with rich experience in the integration of industry and trade in stage lighting and stage special effects related equipment. Its products include moving head lights, par lights, wall washer lights, logo gobo projector lights, power distributor, stage effects such as electronic fireworks machines, snow machines, smoke bubble machines, and related accessories such as light clamps.
