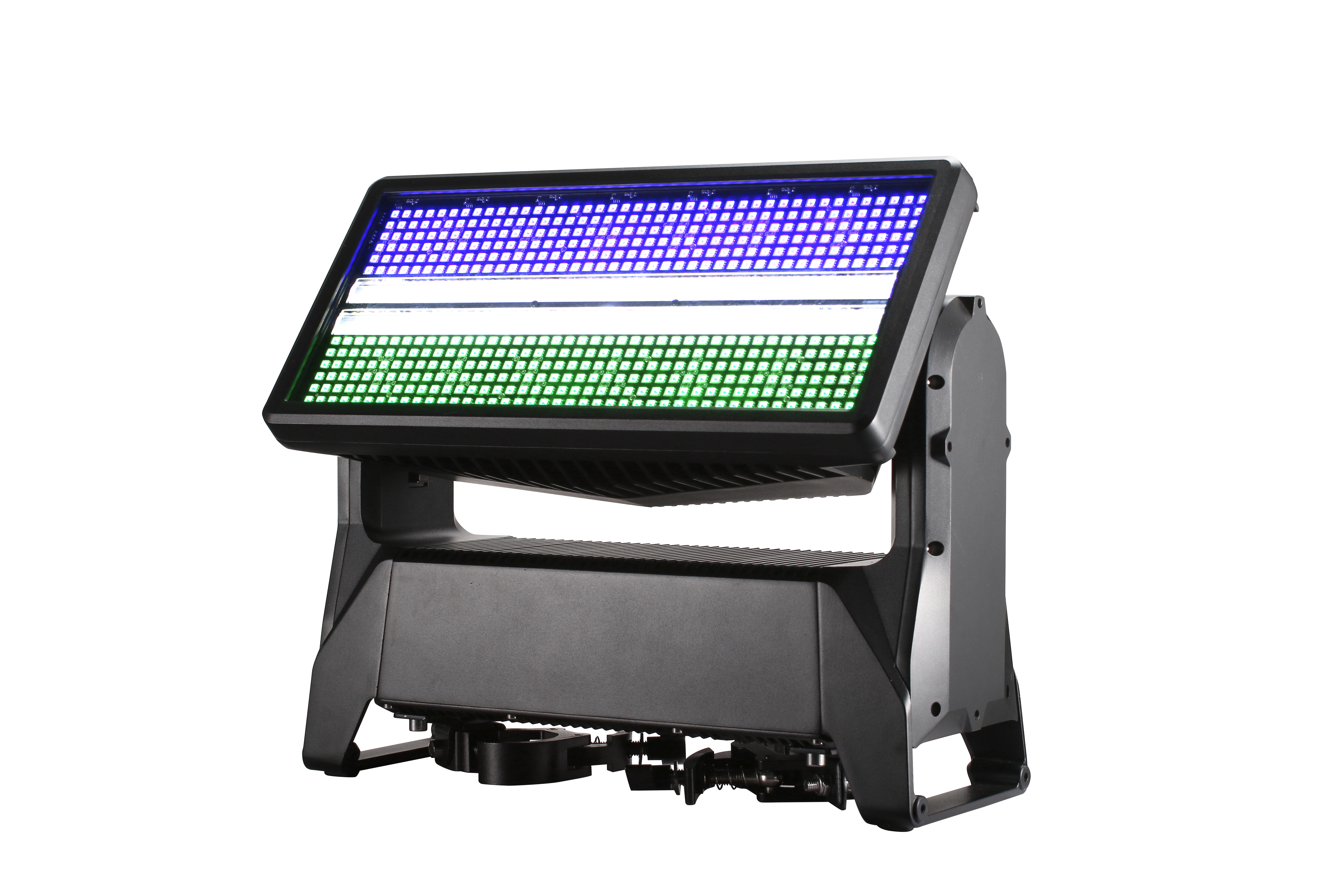

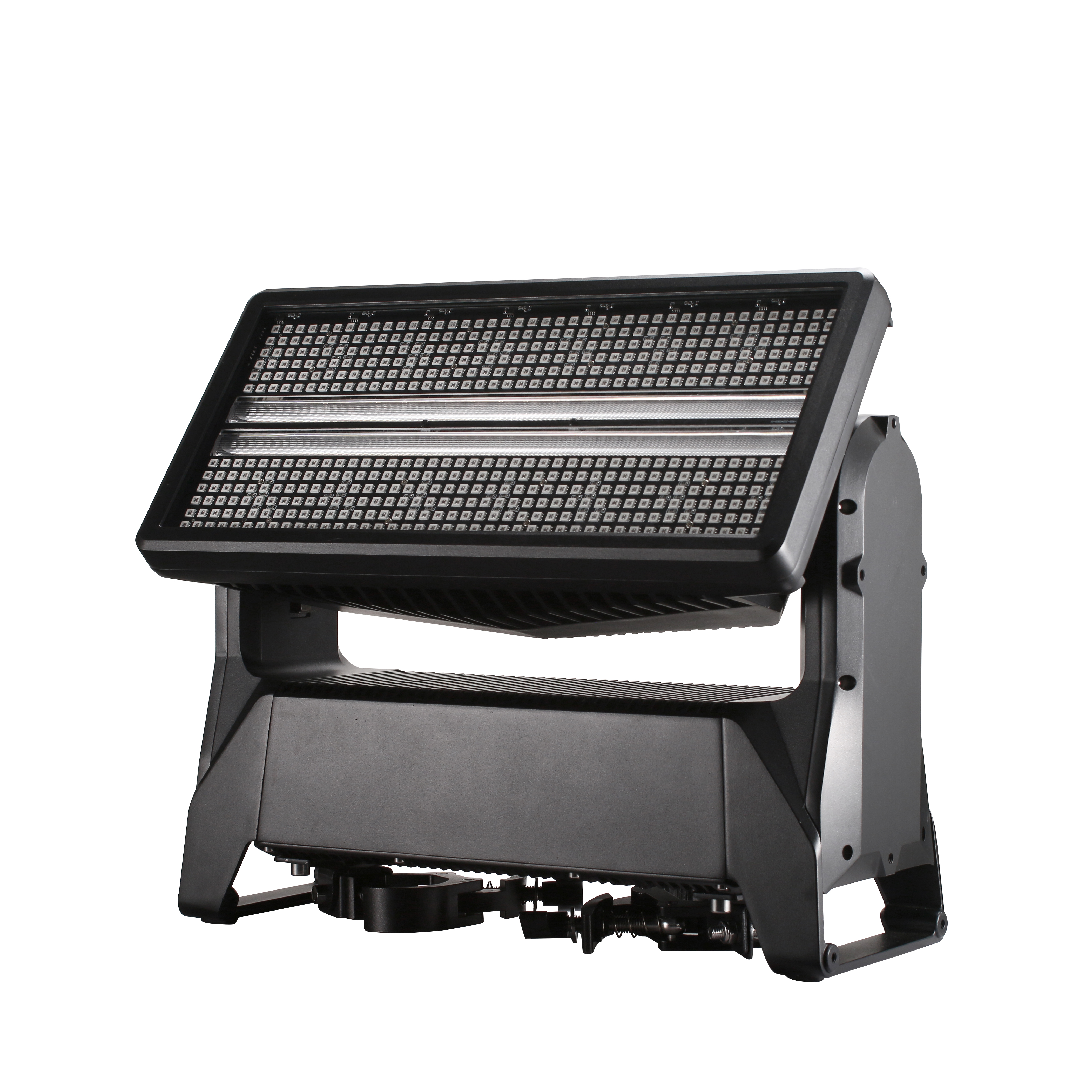

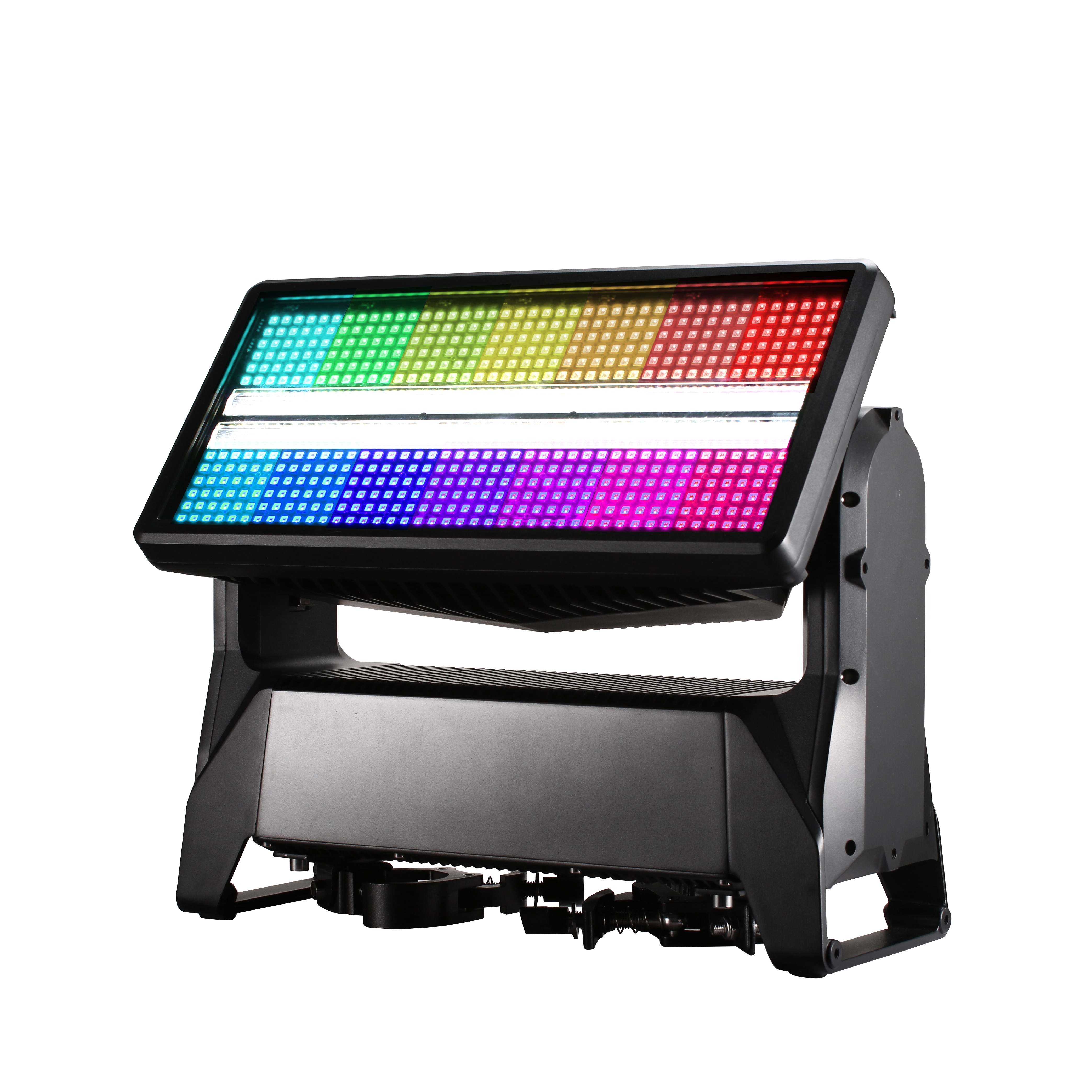

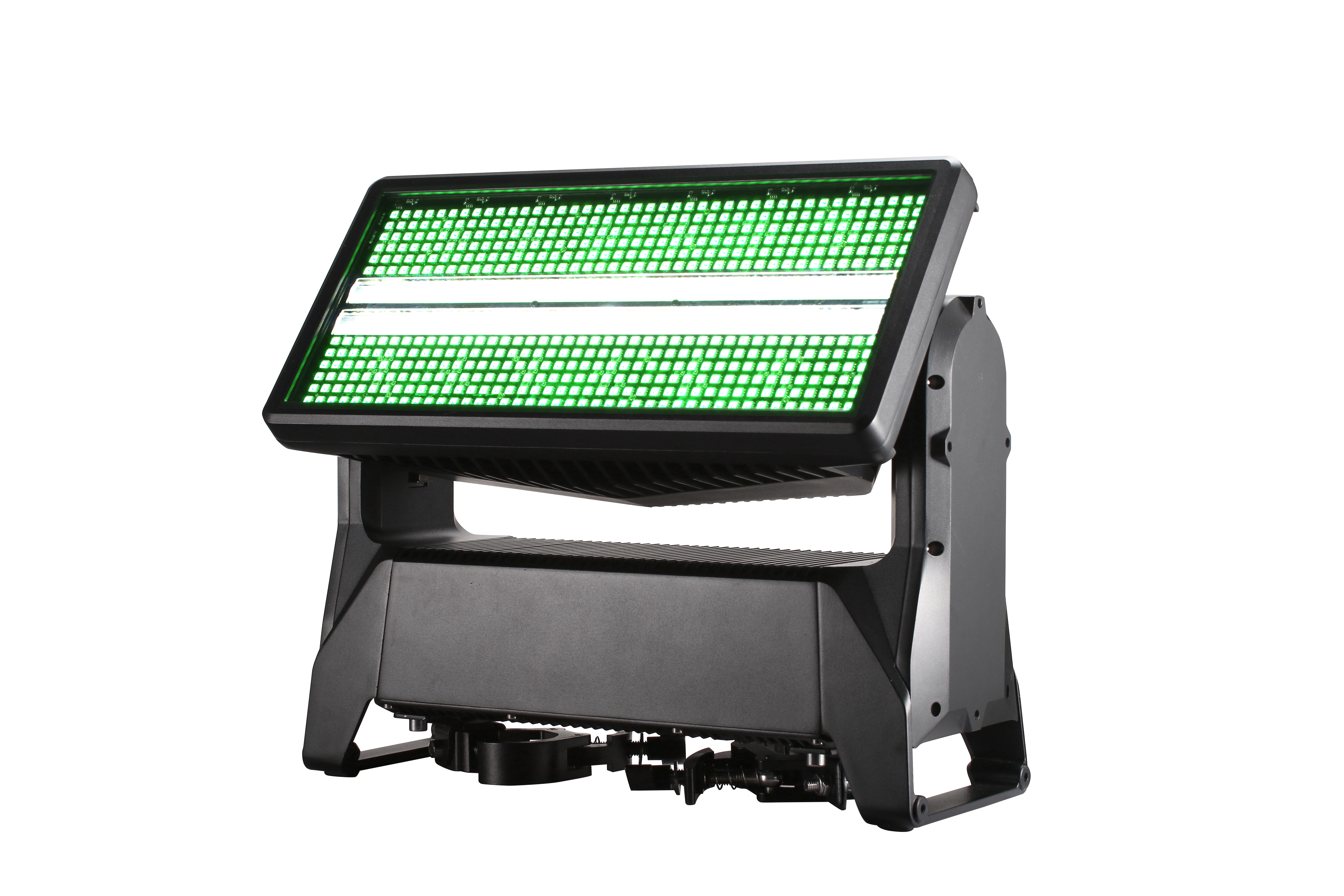

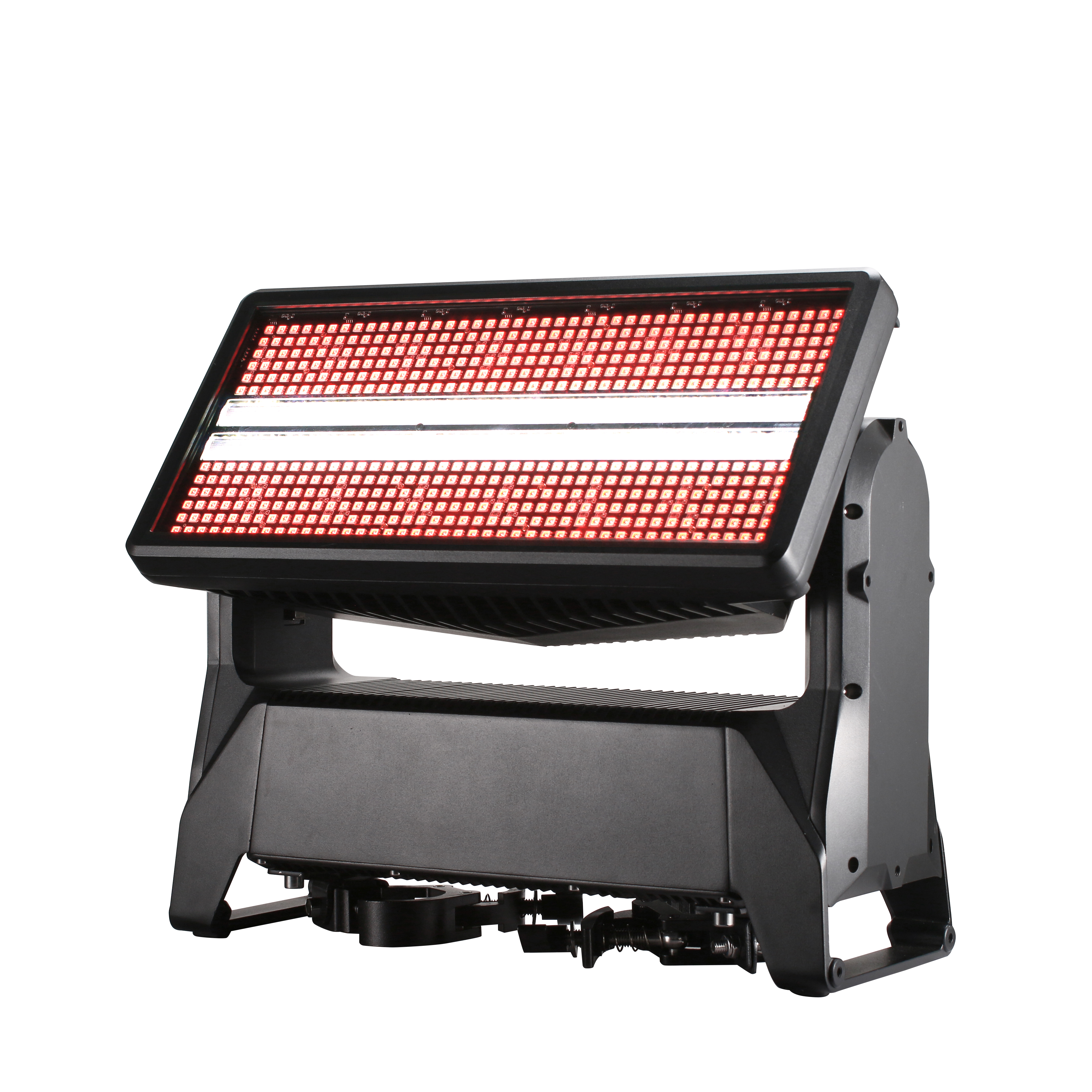

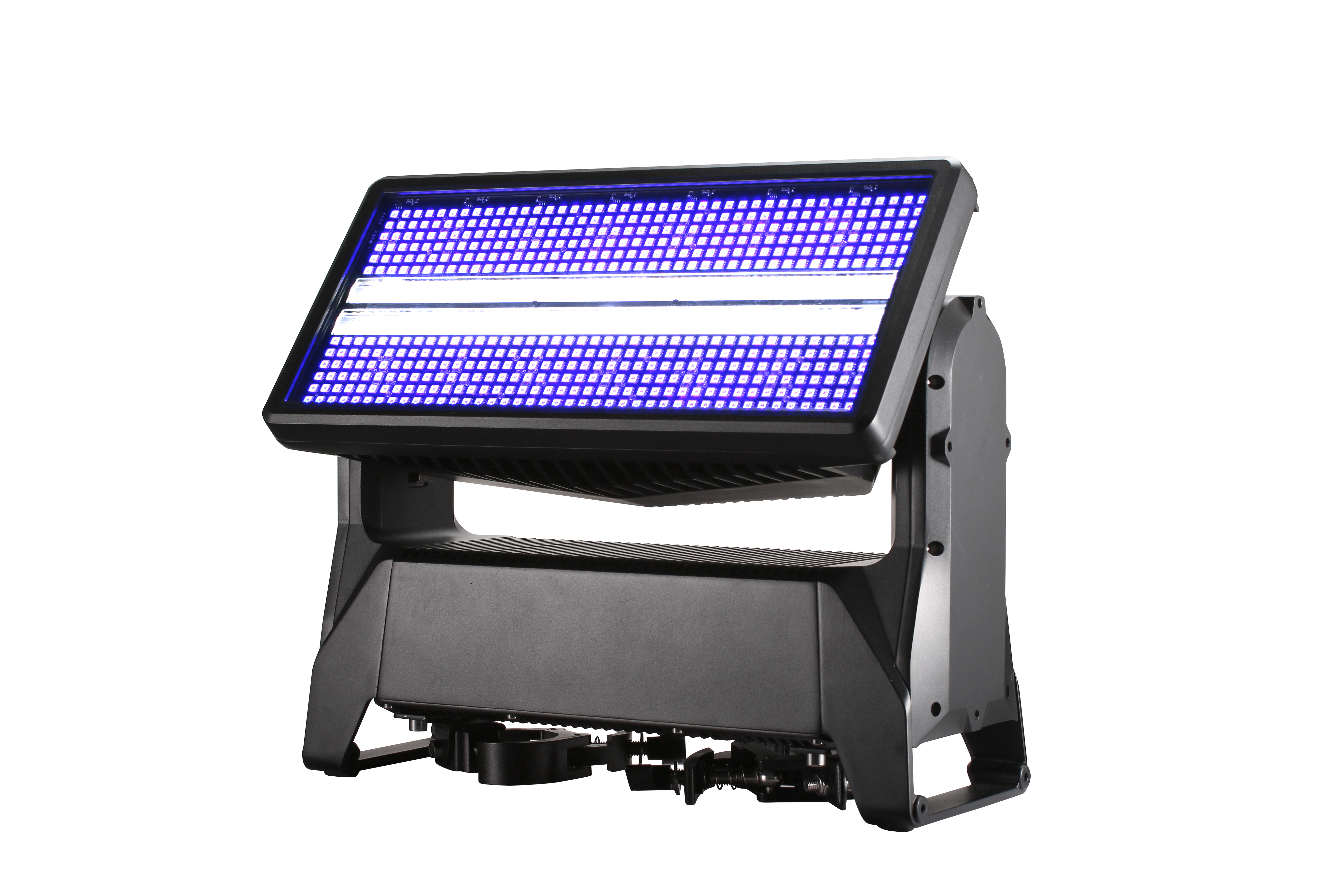

Full-Spectrum Brilliance: 784 LEDs deliver vivid RGB + cool-white effects with pixel-mapped segment control

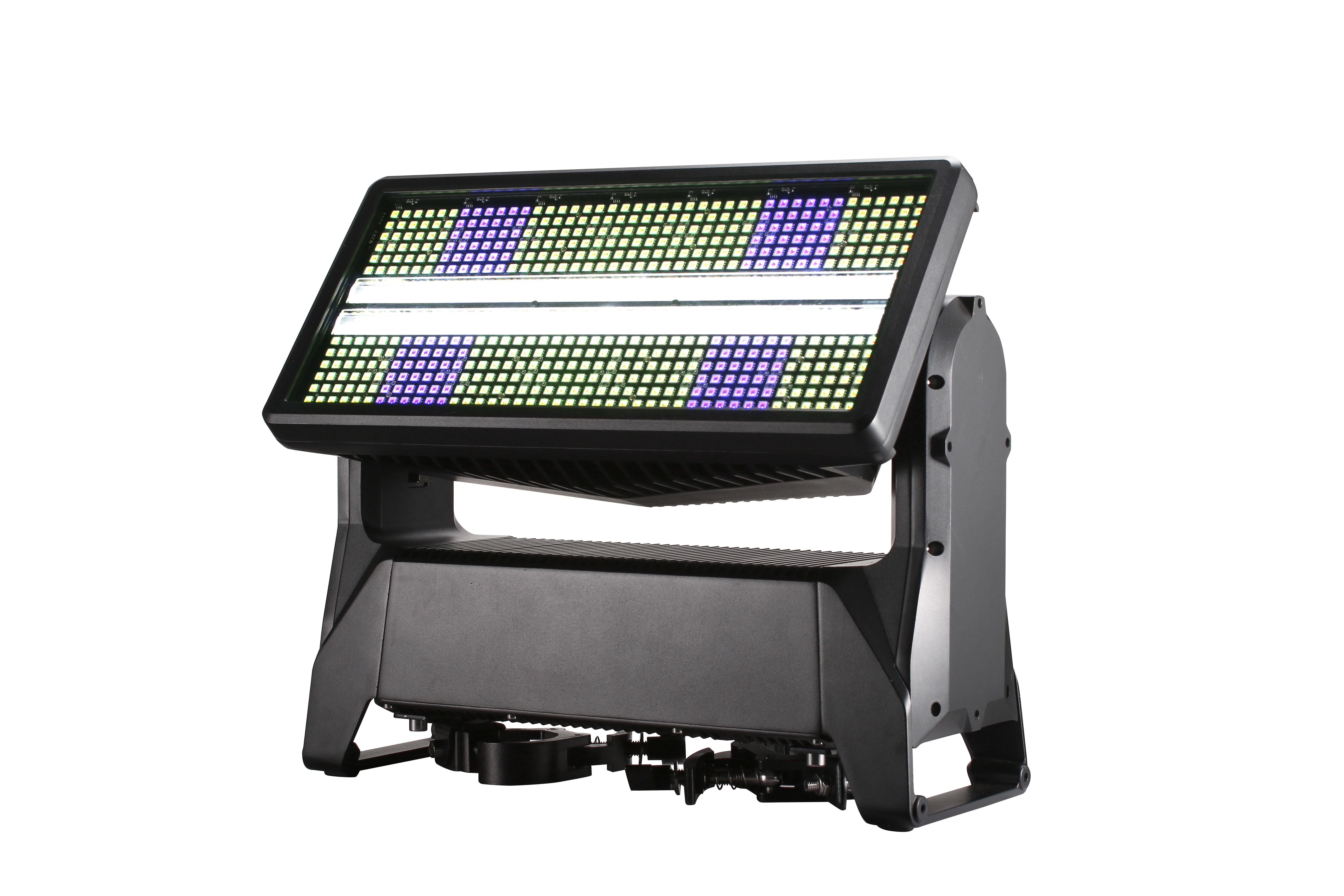

Multi-Zone Design: 42 adjustable LED segments (14 RGB + 28 White) for flexible dynamic effects

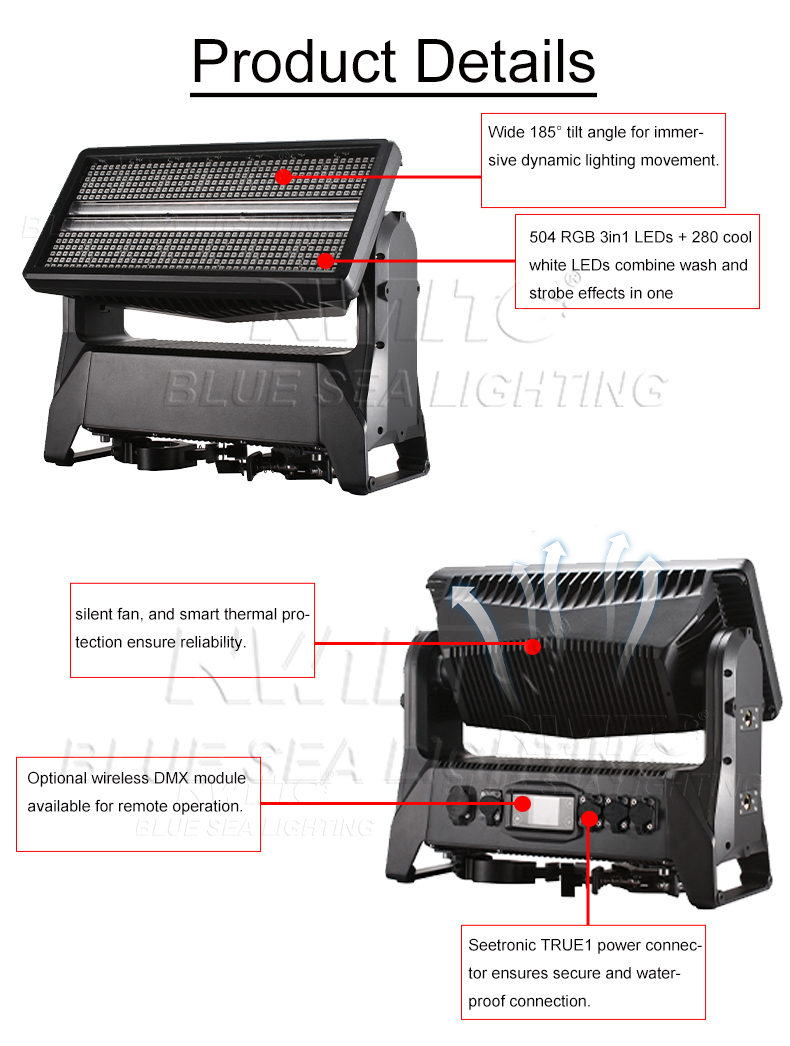

Smooth 185° Tilt: Wide-angle coverage with ultra-quiet movement—ideal for immersive stage designs
Pro-Grade Protocols: DMX512, RDM, Art-Net, and sACN compatible—future-proof and tour-ready
Touchscreen Simplicity: Graphic LCD touch display with intuitive UI for fast setup and control
Optional Wireless DMX: Go cable-free with 2.4GHz W-DMX for clean and fast rigging
Smart Cooling: Temperature-controlled fans with thermal protection ensure safe, silent operation
Built-In Macro FX: Rich internal LED effects minimize programming time and maximize impact
Rugged & Road-Ready: Seetronic connectors, Omega brackets, flight case packaging—built for the stage
Input voltage: 100-240V AC / 50-60Hz
Power: 1800W
LED Type: 1.5W RGB 3in1 LEDs
LED Count: 504
LED Colors: RGB
LED Segments: 14 (2 x 7)
LED Type: 5W 6500K LEDs
LED Count: 280
LED Colors: Cool-White
LED Segments: 28 (2 x 14)
Resolution: 8-16 Bit
Tilt (Degrees): 185°
Control Modes: 8CH / 18CH / 25CH / 95CH / C 8CH /
C 11CH / C 13CH / C 24CH / C 30 CH / C 47CH / C 68CH/
C 74CH / C 97CH
Display: Illuminated graphic LCD Touch Screen
Protocol: USITT DMX-512, RDM, Art-Net, sACN
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™ (optional)
Cooling: Temperature controlled, overheating protection
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects

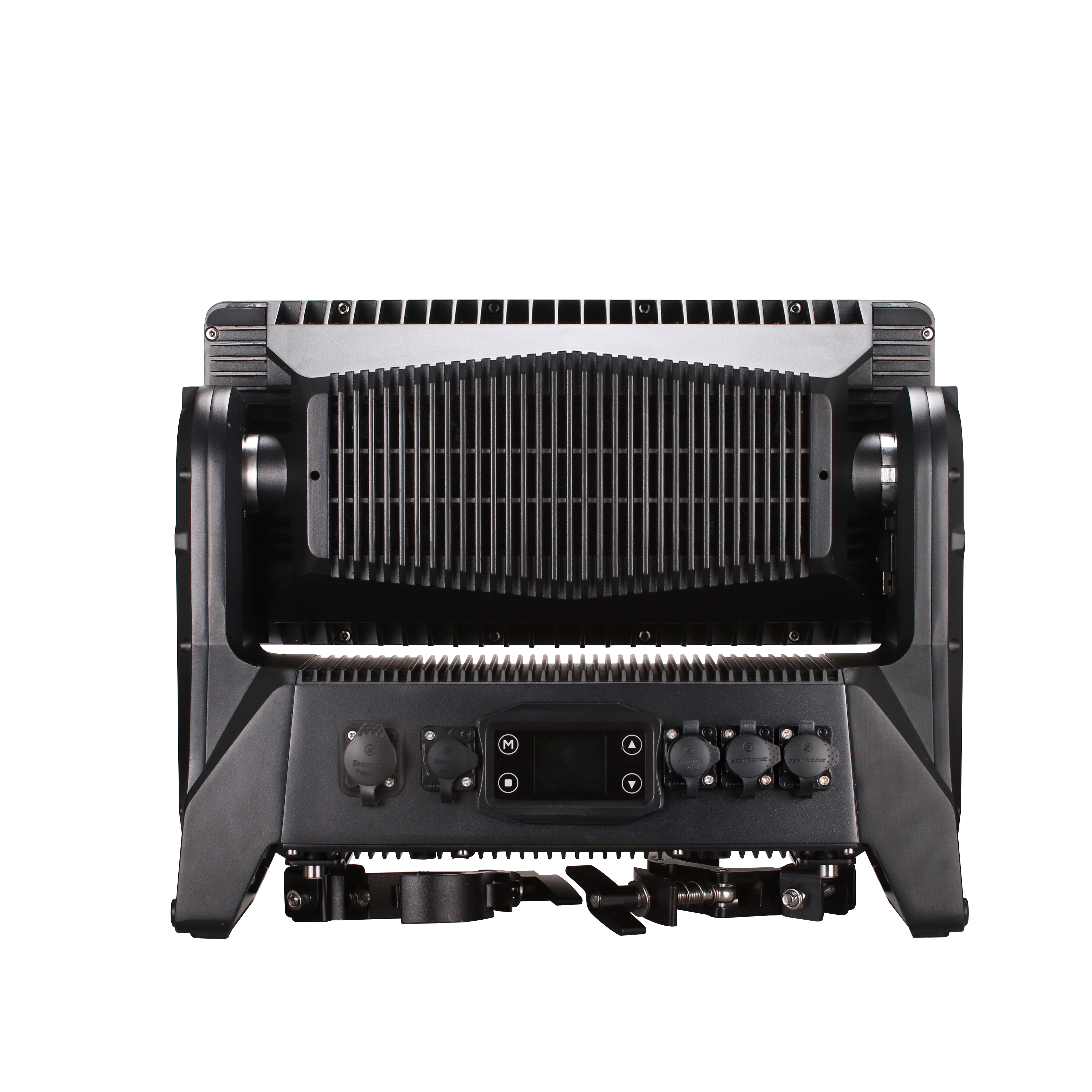

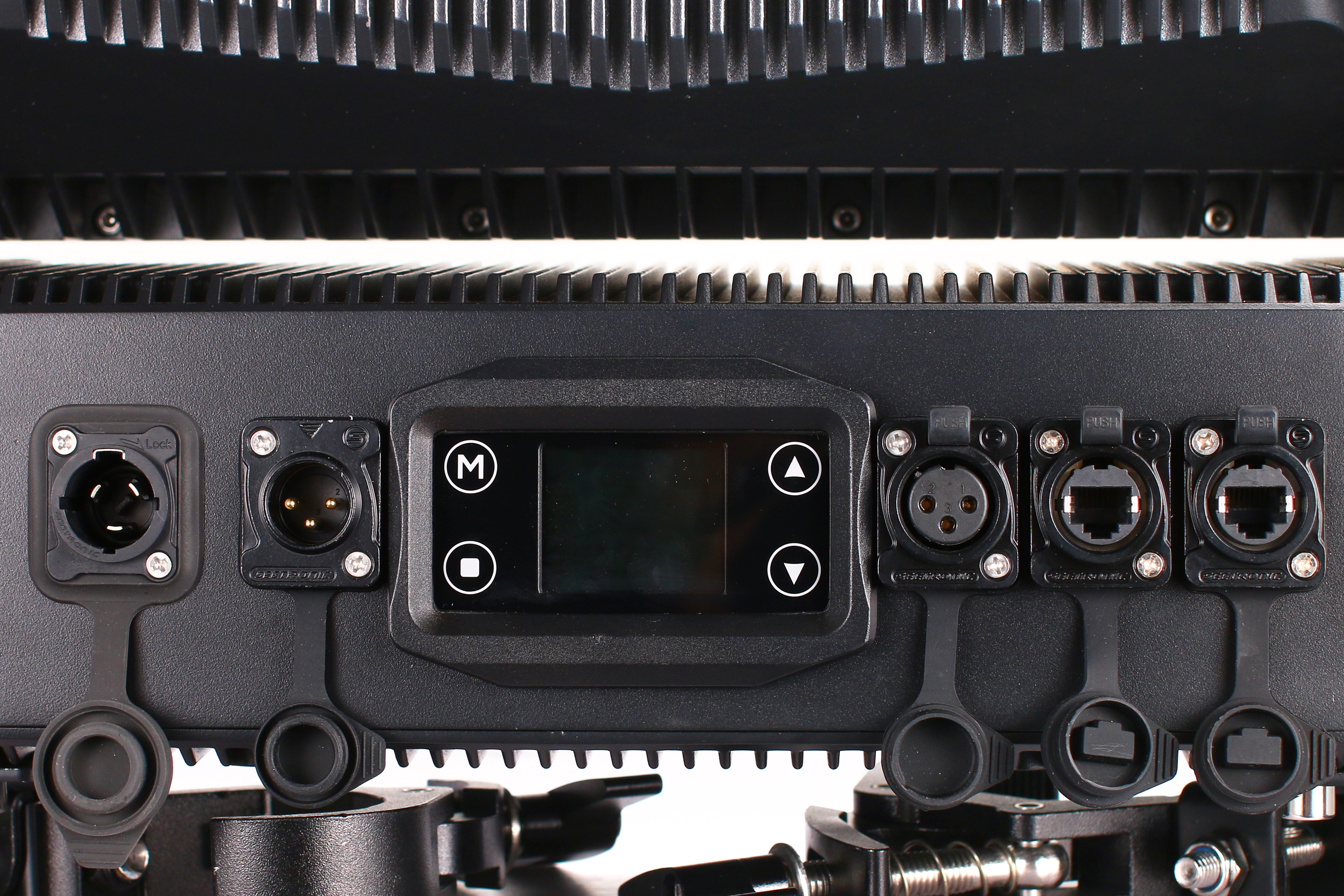

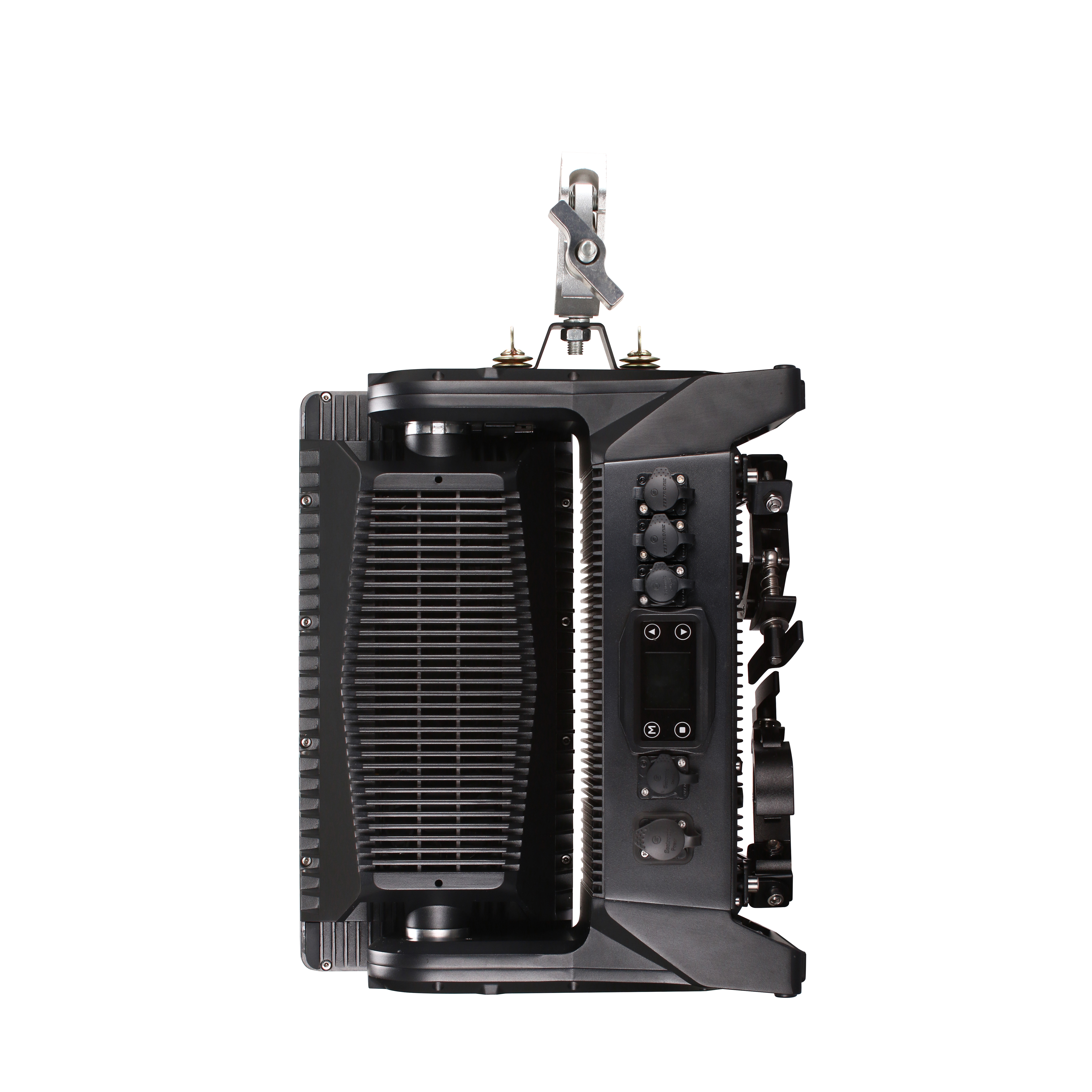

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
Power Input: Seetronic PowerCON TRUE1 In
Art-Net: RJ45 In/Out

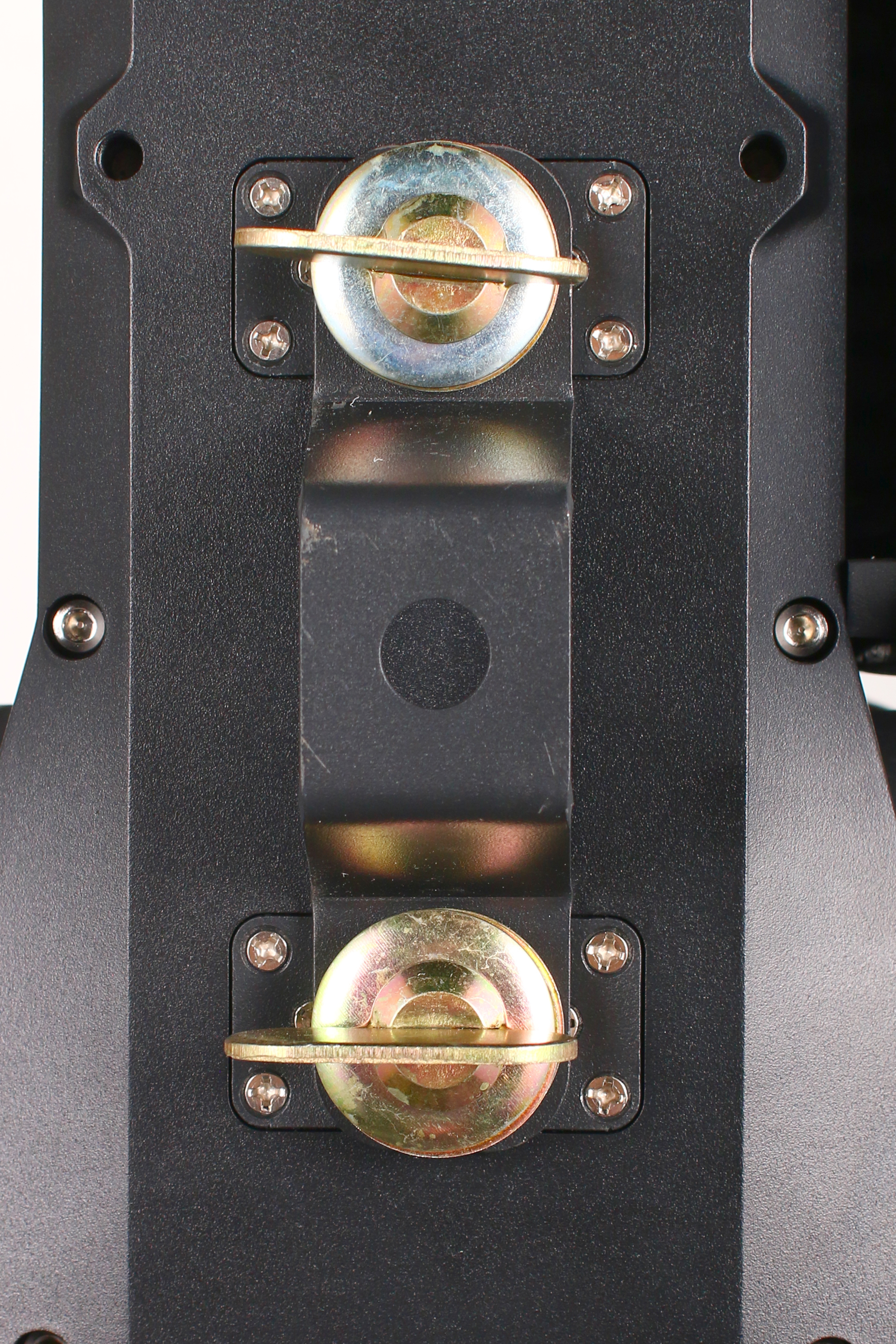

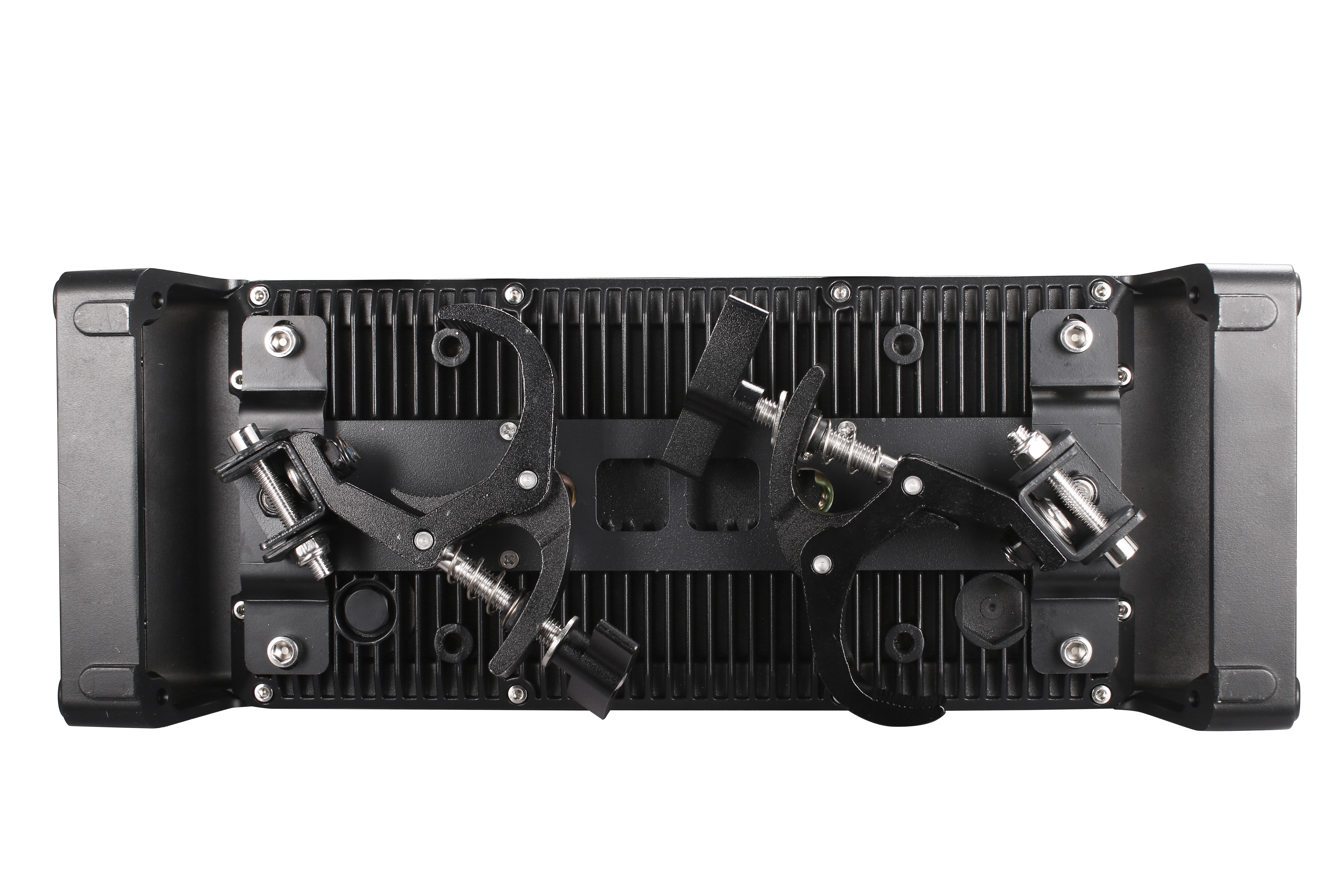

Hanging: Omega-Bracket (Support arm side hanging)
Safety wire attachment: foldout eyelets
Folding clamps (optional)
Single fixture: cardboard
Tourpack: 4-way Flight Case
Standard colors: black
Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in
N.W: 13.0 kg G.W: 16.0 kg
Size:56x43x25cm
