    24 Road 16A Waterproof CEE 3pin +4 Road 32A CEE 5pin Output Power Distribution Box
    24 Road 16A Waterproof CEE 3pin +4 Road 32A CEE 5pin Output Power Distribution Box
    24 Road 16A Waterproof CEE 3pin +4 Road 32A CEE 5pin Output Power Distribution Box
    ❤ Add to collection

  • 24 Road 16A Waterproof CEE 3pin +4 Road 32A CEE 5pin Output Power Distribution Box

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
    Input current: self-locking staggered zero-fire 400A rhino plug

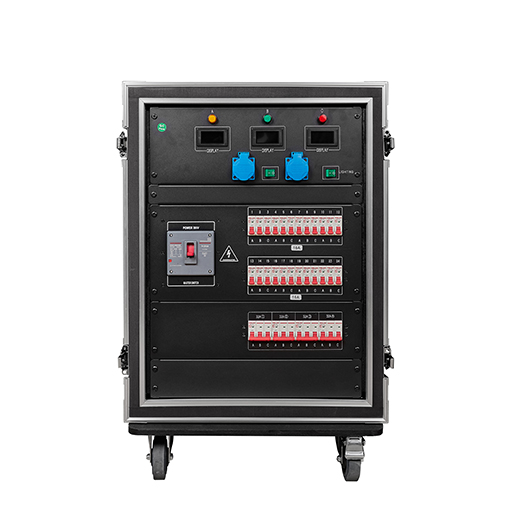

    Display: With three-phase A.B.C direct-reading independent LCD current and voltmeter display, various data can be monitored in real time without switching

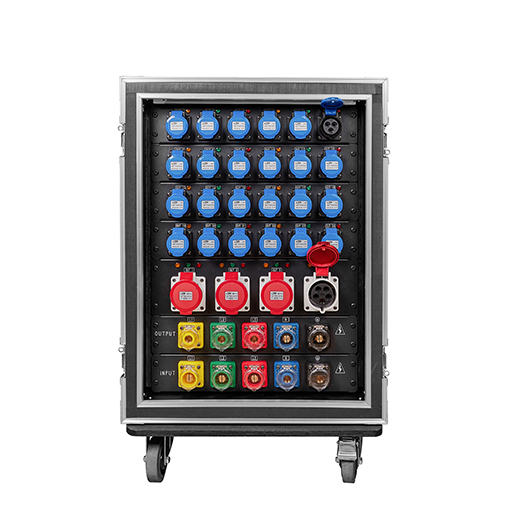

    Output: 24 channels of 16A waterproof + 4 channels of 32A output, each output with indicator light display

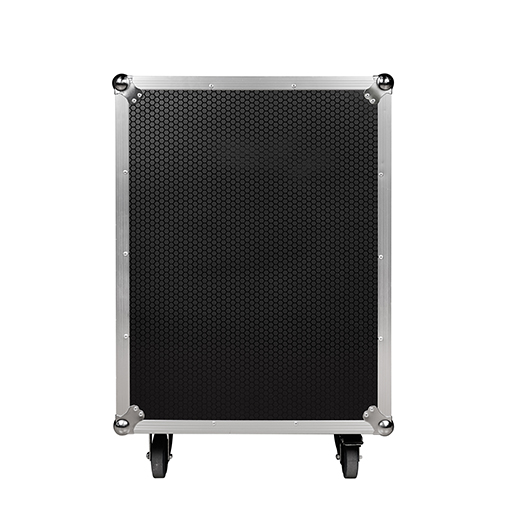

    Body: Use exquisite and durable double-layer shock-proof hexagonal pattern plate; 15U standard cabinet.
    Control system: the main control adopts 250A main circuit breaker; each independent circuit breaker C20A, with double protection of overload and short circuit
    Normal working environment:
    1. Ambient temperature: 0-±45C
    2. Relative humidity: 40%-80%
    Equipped with LED blue light work light
    Product size (mm): L670×W600×H930

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: self-locking staggered zero-fire 400A rhino plug
Display: With three-phase A.B.C direct-reading independent LCD current and voltmeter display, various data can be monitored in real time without switching
Output: 24 channels of 16A waterproof + 4 channels of 32A output, each output with indicator light display
Body: Use exquisite and durable double-layer shock-proof hexagonal pattern plate; 15U standard cabinet.
Control system: the main control adopts 250A main circuit breaker; each independent circuit breaker C20A, with double protection of overload and short circuit
Normal working environment:
1. Ambient temperature: 0-±45C
2. Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670×W600×H930
