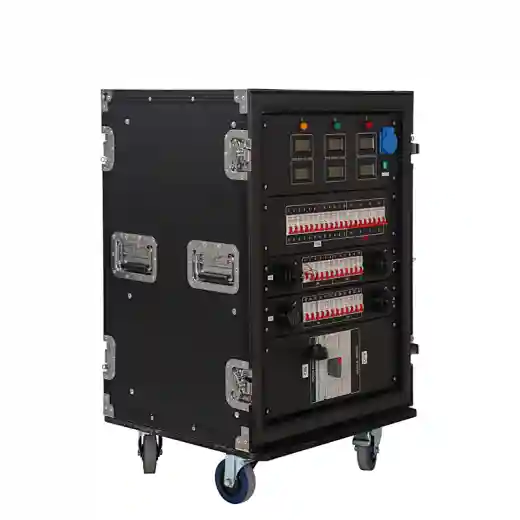

Product Description
| Product name: | Customized Power 12 Channels American Plug Edsion 110V + 4 Channels L14-30 220V + 12 Channels Power con 110V Output Power Distribution |
| Power supply: | three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5% |
| Input current: | 400A American Camlock |

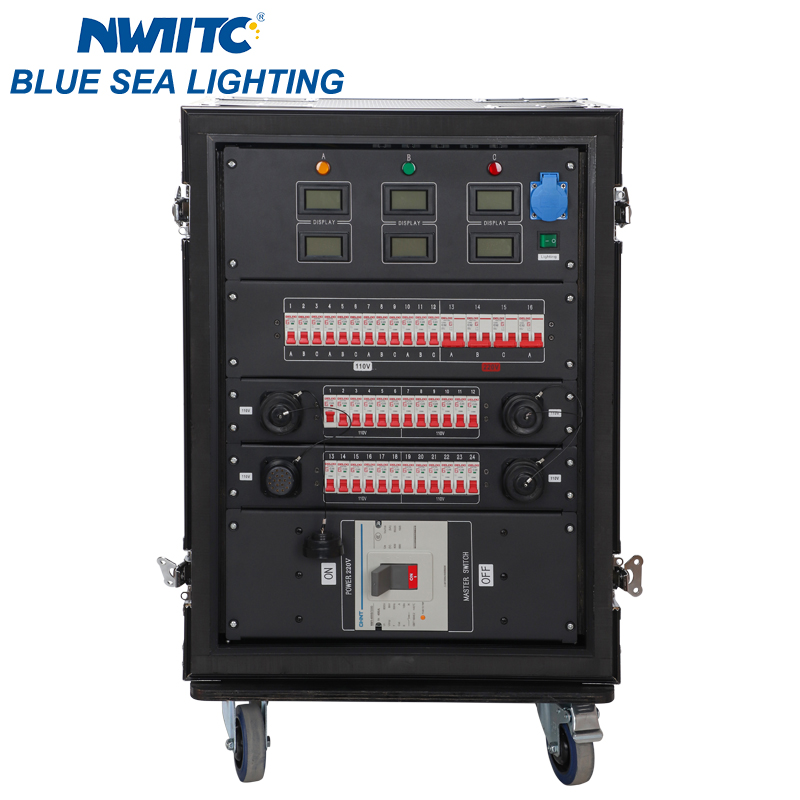

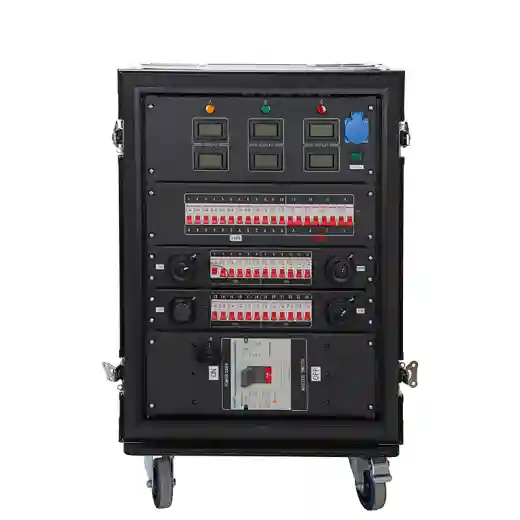

| Display: | With three-phase A.B.C direct-reading independent LCD current and voltmeter display, various data can be monitored in real time without switching |
| Output: | 12 channels American plug Edsion 110V + 4channels L14-30 220V + 12 channels power con 110V output, each output with indicator light display |

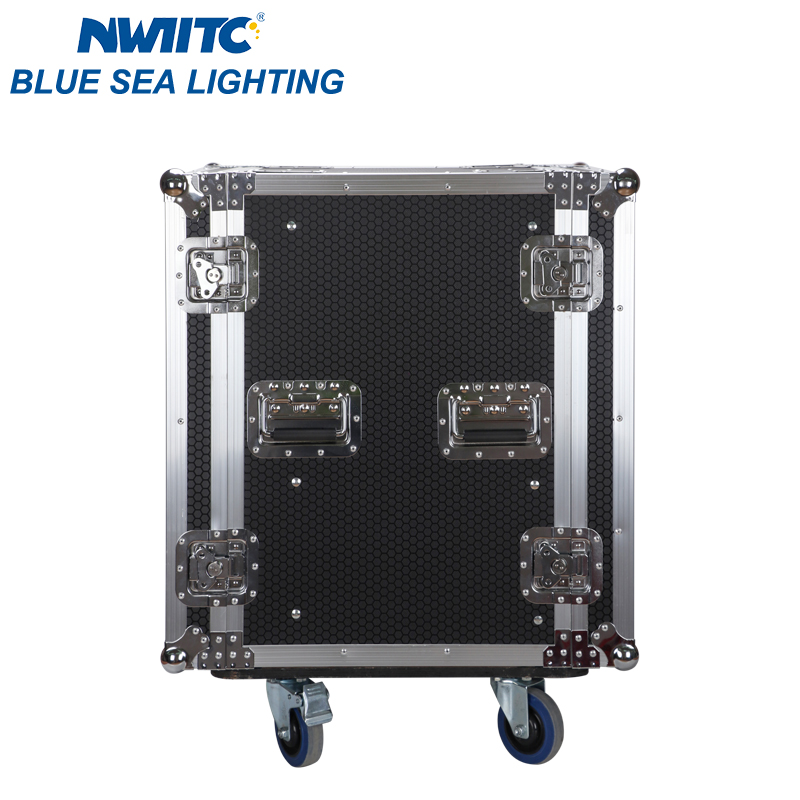

| Body: | Use exquisite double-layer shock-proof hexagonal pattern plate; 14U standard cabinet. |
| Control system: | 200A main circuit breaker is used for the main control; each independent circuit breaker C20A, with double protection of overload and short circuit |
Normal working environment:
| Ambient temperature: 0-±45C
Relative humidity: 40%-80% |
| Equipped with LED blue light work light |
| Product size (mm): | L670×W600×H930 |
More details of our

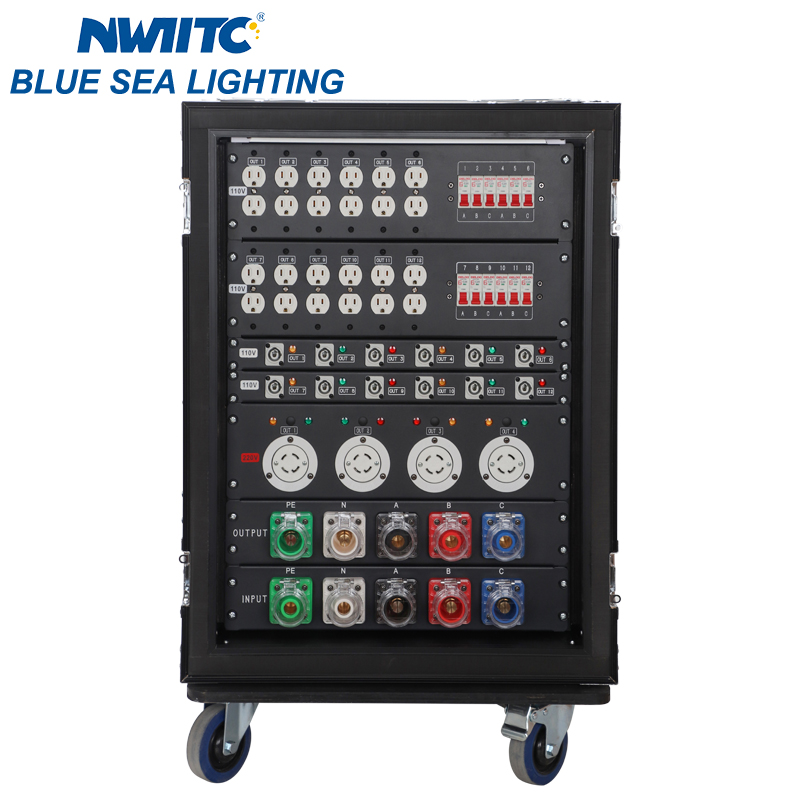

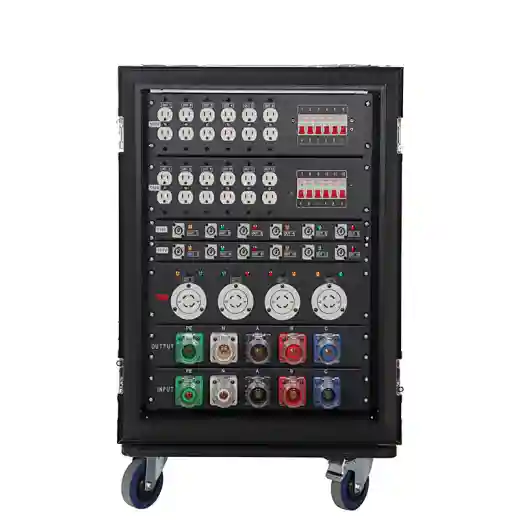

12 channels American plug Edsion 110V + 4channels L14-30 220V + 12 channels power con 110V output, each output with indicator light display
as below:
