Introduction: Why Lens Type Matters in Stage Lighting
In stage lighting, the lens is not just a transparent interface—it’s the core that determines how beams behave, how patterns are shaped, and how ambiance is created. Understanding the three primary types of LED lenses—Fresnel, Profile, and Wash—helps lighting designers, technicians, and event professionals select the right tool for every scene.
This article explains each type and features real-world fixtures like the 200W RGBW LED Fresnel Zoom Light, 300W RGBAL LED Profile Spotlight, and 37x15W RGBW LED Wash Light for maximum clarity and practical application.
1. Fresnel Lens: Soft, Even, and Focusable
What Is a Fresnel Lens?
A Fresnel lens uses concentric rings to produce a soft-edged, diffused beam. It’s ideal when you want general illumination without harsh lines. Fresnel lights are essential for front lighting and ambient mood creation.

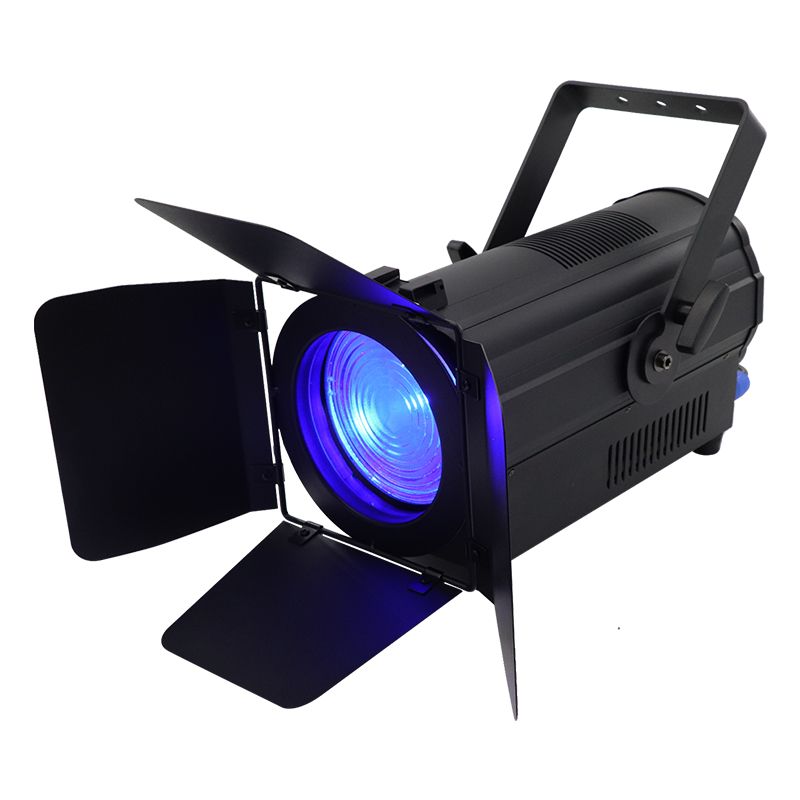

The 200W RGBW LED Fresnel Zoom Light is a professional-grade soft beam light designed for theater, studios, and event stages. It features:
Motorized zoom from 15°–55°
RGBW color mixing for versatile scene rendering
DMX control for smooth dimming and cue integration
Its output mimics traditional tungsten Fresnels but adds the flexibility of full-color LEDs, making the 200W RGBW LED Fresnel Zoom Light a go-to choice for designers seeking natural transitions and precise ambiance.
Best Applications:
Whether used alone or in grids, the 200W RGBW LED Fresnel Zoom Light delivers consistent, flicker-free output ideal for high-definition video and live shows alike.
2. Profile Lens: Sharp, Shaped, and Controlled
What Is a Profile Lens?
Profile lenses (also called ellipsoidals) focus light into a sharp beam with defined edges. They allow gobo projection, framing, and precise cuts using internal shutters.
The 300W RGBAL LED Profile Spotlight combines precision optics with advanced color mixing:
Accepts gobos for logo or texture projection
Offers framing shutters for shaping beams on scenery
High CRI for accurate skin tone and fabric rendering
The 300W RGBAL LED Profile Spotlight is ideal for isolating speakers, highlighting scenery, and delivering theatrical realism through sharp, controlled light.
Best Applications:
Logo projection in events or theaters
Spotlighting actors or speakers

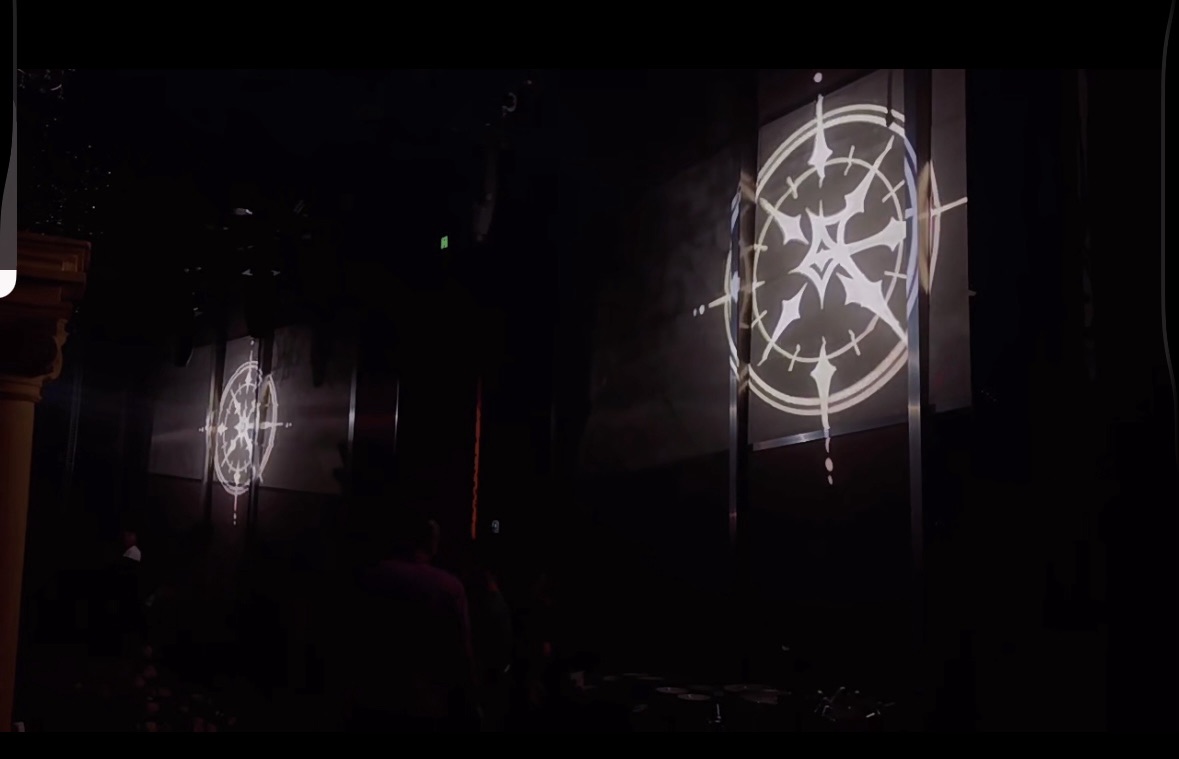

Creating "moonlight through window" effects with gobos
If control and shape matter, the 300W RGBAL LED Profile Spotlight gives you the tools to sculpt with light.
3. Wash Lens: Broad, Blended, and Colorful
What Is a Wash Lens?
Wash lenses spread light over a wide field with soft edges, making them perfect for background color, atmospheric tones, or covering large cast and sets evenly.

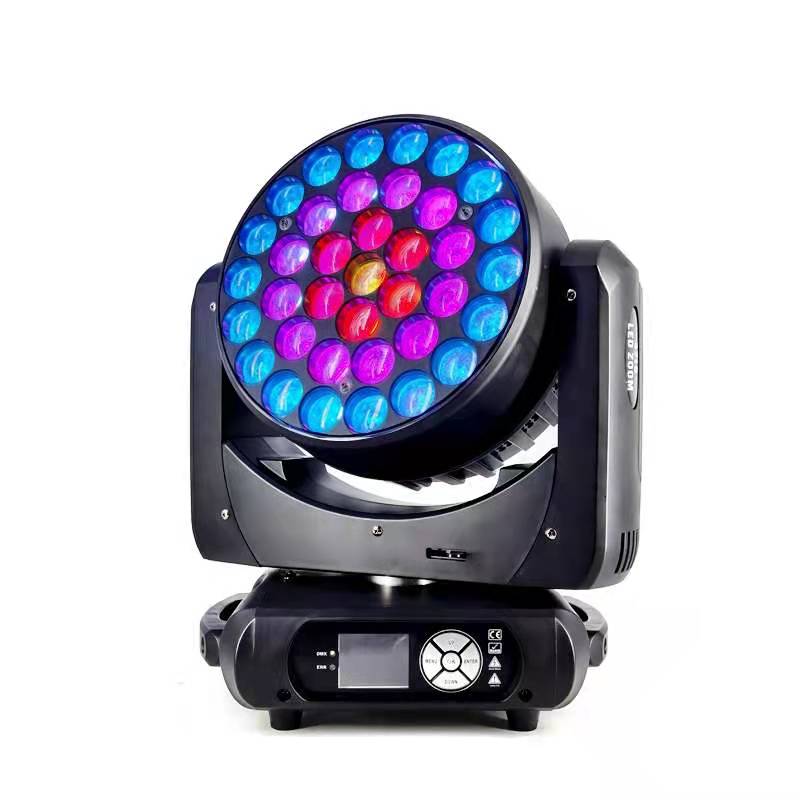

The 37x15W RGBW LED Wash Light is a high-output moving head that excels in delivering blended color washes:
37 RGBW 4-in-1 LEDs for rich, saturated color
Motorized zoom from tight 10° to wide 60° beam
Pixel mapping for eye-catching effects
With its wide angle and dynamic flexibility, the 37x15W RGBW LED Wash Light is a staple in concerts, churches, and theatrical stages where immersive lighting is essential.
Best Applications:
Background color on drapes or sets
Atmospheric effects during musical transitions
Color blending across performers and props
The 37x15W RGBW LED Wash Light supports both ambiance and visual flair in one powerful fixture.
4. Comparison Table
| Lens Type | Beam Edge | Focusable | Recommended Fixture | Ideal For |
|---|
| Fresnel | Soft | Yes | 200W RGBW LED Fresnel Zoom Light | General illumination and mood wash |
| Profile | Sharp | Yes | 300W RGBAL LED Profile Spotlight | Focused projection and gobos |
| Wash | Very soft, wide | No | 37x15W RGBW LED Wash Light | Background color and coverage |
