Introduction: Navigating the Motion

Moving head lights have become the cornerstone of modern stage and event lighting design. These fixtures are distinguished by their ability to pan, tilt, and produce a wide array of visual effects—all while being mounted in different ways. The two most common types are yoke-based and base-mounted moving heads.

But which is best for your application? In this article, we compare the structure, performance, and applications of both, with practical product examples like the IP65 10x60W Zoom Pixel Beam Bar and the 1000W Moving Head LED Strobe Light.

I. What Is a Yoke-Based Moving Head?

1. Design Overview

Yoke-based moving heads feature a U-shaped arm that allows the fixture head to rotate independently across horizontal (pan) and vertical (tilt) axes. The design delivers high maneuverability and aesthetic symmetry.

2. Key Advantages

• Full Range Motion: Offers greater flexibility and a wide sweeping range.

• Better Weight Distribution: Balances well on trusses and brackets.

• Clear Line-of-Sight: Suitable for creative pixel mapping or beam effects.

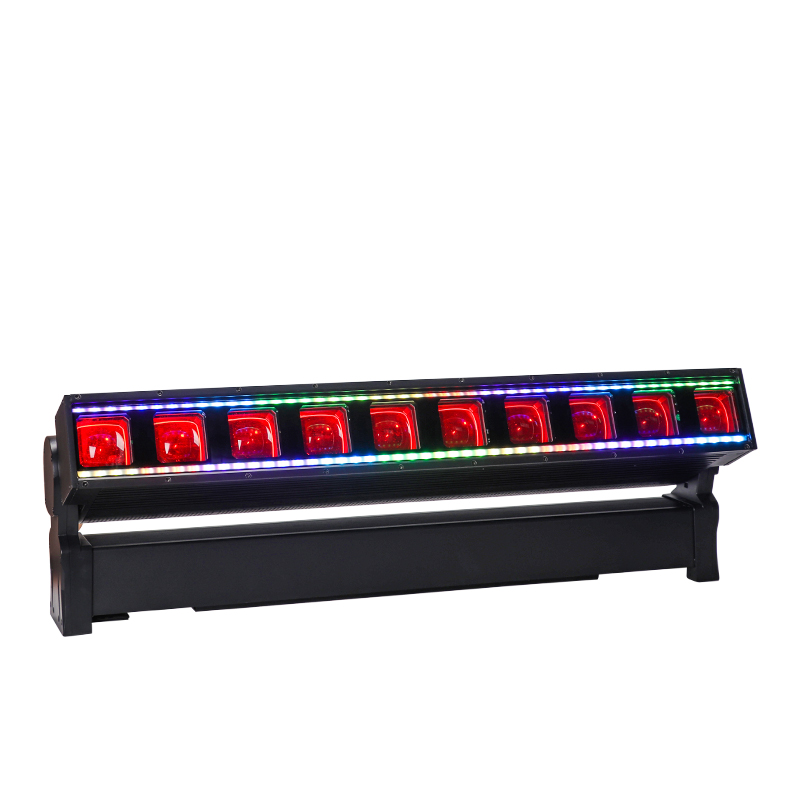

3. Product Example: IP65 10x60W Zoom Pixel Beam Bar

The IP65 10x60W Zoom Pixel Beam Bar exemplifies the strengths of yoke-based designs. It features a row of ten zoomable LED pixels with RGBW backlighting. Each pixel can be controlled independently, enabling advanced effects such as sweeps, waves, or chases.

• IP65-Rated for outdoor installations

• Powerful pixel control with zoom function

• Smooth pan/tilt movement via yoke arm

• Ideal for: Concerts, festivals, architectural lighting

With its precise movement and dynamic programming options, the IP65 10x60W Zoom Pixel Beam Bar thrives in both touring and fixed installations.

II. What Is a Base-Mounted Moving Head?

1. Design Overview

Base-mounted heads have a compact form where the light module sits directly above the fixture base. These fixtures often prioritize intensity and speed over full rotational freedom.

2. Key Advantages

• Space-Saving: Perfect for low ceilings or compact rigs

• Simplified Construction: Fewer mechanical parts, easier maintenance

• Rapid Output: Great for high-intensity effects like strobes or sharp beams

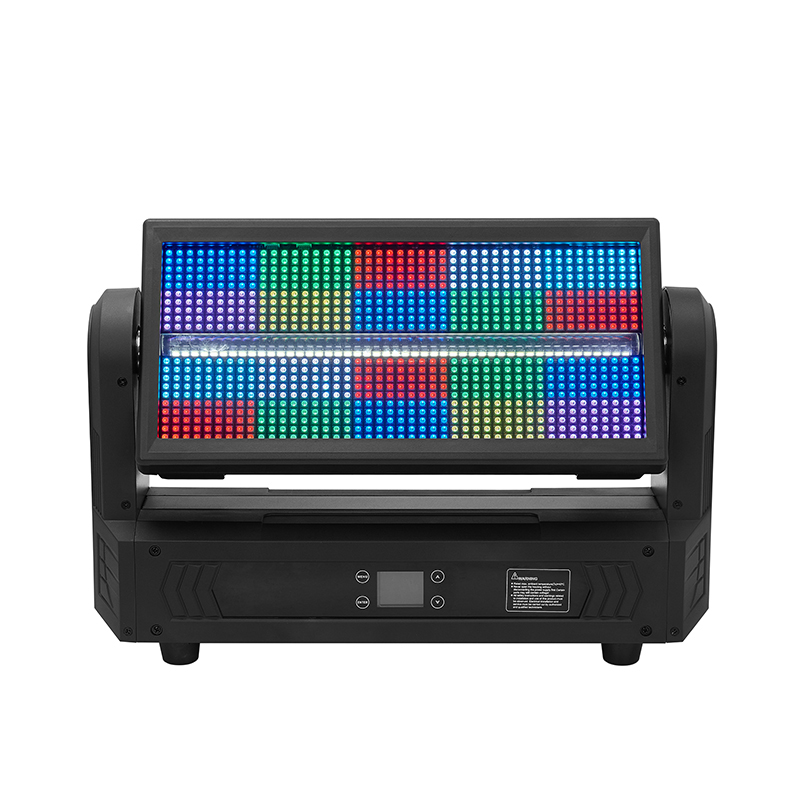

3. Product Example: 1000W Moving Head LED Strobe Light

The 1000W Moving Head LED Strobe Light is a powerful base-mounted fixture designed for maximum output in high-energy environments. With a 1000W LED engine, it delivers explosive flashes and immersive whiteouts.

• Compact base design ensures rigging efficiency

• Full tilt/pan movement, despite minimal structure

• Best for: Nightclubs, live events, electronic shows

• DMX-compatible with multiple control modes

The 1000W Moving Head LED Strobe Light provides raw power in a compact body—ideal when every second and inch counts.

III. Comparison Table

IV. Use Cases: Which One Should You Choose?

Yoke-Based Fixtures Are Best When:

• You need versatile movement and creative effects

• You have access to truss space and need symmetrical design

• Your design calls for multi-point or pixel-chasing dynamics

Base-Mounted Fixtures Are Ideal For:

• Rapid motion and burst output

• Tight ceiling rigs or compact venues

• Effects like strobes, beam hits, and flickers

Many lighting designers find that combining both types—such as using the IP65 10x60W Zoom Pixel Beam Bar for sweeping color animations and the 1000W Moving Head LED Strobe Light for climactic flash accents—produces balanced and engaging visual environments.
