Introduction: The Invisible Backbone of Performances

Behind the dazzling lights, booming sound, and spectacular visuals of every live performance lies a critical foundation—power distribution. Without reliable, safe, and efficient power systems, even the most creative shows can grind to a halt. On stage, hundreds of devices—from LED lighting rigs and sound consoles to special effects machines—demand simultaneous, stable electricity. Proper power distribution ensures that these demands are met without overloading circuits or compromising safety.

In this article, we explore the science and practice of stage power distribution, focusing on efficiency, safety, and the latest technological advancements. We will also highlight two professional-grade solutions: the Power Box 4x 220V 19pin Socapex Output，and the 12x20A Edison Power Distributor Box， With the support of Blue Sea Lighting， event organizers and lighting designers can optimize stage setups for flawless execution.

1. Why Power Distribution Matters in Stage Production

Live events demand significant amounts of electricity, often under conditions that are far from ideal. Power distribution is not just about delivering electricity—it’s about doing so safely, efficiently, and flexibly.

• Safety: Proper distribution prevents overloading, reduces the risk of electrical fires, and ensures performers and audiences are protected.

• Efficiency: Consolidating multiple outputs into a single unit reduces cable clutter and accelerates setup times.

• Reliability: Redundant circuits and professional-grade components minimize downtime during critical moments.

Without these principles, even small errors in planning can lead to blackouts, damaged equipment, or dangerous accidents.

2. Core Concepts of Stage Power Distribution

a. Multi-Circuit Output

Modern distribution units provide multiple outputs, each connected to a separate breaker. This prevents entire systems from going down when one circuit fails.

b. Socapex Multi-Core Connectors

The Socapex 19-pin connector is an industry standard. It consolidates six circuits (with live, neutral, and ground) into one cable, reducing clutter and improving reliability. Ideal for professional lighting rigs, it simplifies deployment across large stages.

c. Edison Outputs

Edison connectors are widely used for general-purpose distribution. While they may not carry as much current as Socapex systems, they are perfect for flexible, smaller-scale devices or mixed setups.

d. Overload Protection

Every circuit in professional-grade distribution boxes is equipped with breakers. This isolates problems and prevents cascading failures across an entire event.

e. IP-Rated Protection

For outdoor events, weather resistance is vital. Distribution boxes with waterproof or weatherproof housings ensure uninterrupted performance in rain, dust, or humid conditions.

3. Practical Applications: Powering Live Events

• Concerts and Festivals: Hundreds of lighting fixtures, sound amplifiers, and LED walls require stable, well-organized circuits. Socapex outputs excel in these scenarios.

• Theatrical Productions: Precise circuit separation ensures smooth transitions between scenes without overloading.

• Corporate Events: Clean, professional setups require quick installation, minimal visible cabling, and reliable safety standards.

• Outdoor Events: Weatherproof units are indispensable for stability in unpredictable environments.




4. Product Highlights

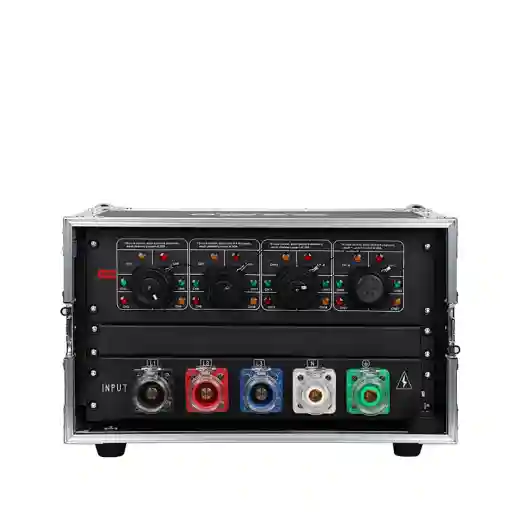

Power Box 4x 220V 19pin Socapex Output

This distribution box provides multiple Socapex outputs, ideal for large-scale lighting systems. Its robust design, high-current capacity, and streamlined connections allow designers to efficiently manage six circuits through a single cable. Perfect for professional touring productions, festivals, and theaters.

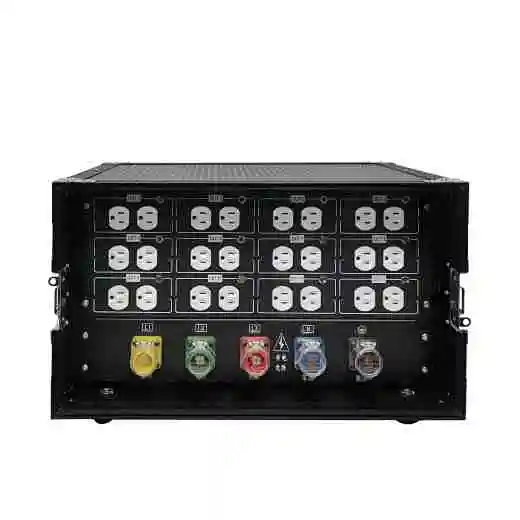

12x20A Edison Power Distributor Box

Designed for flexibility, this distributor box features twelve Edison outputs, each with 20A capacity. It’s the go-to solution for smaller devices and mixed-use setups. Its compact build and breaker protection make it an essential tool for corporate events, small theaters, and supplementary power needs at larger shows.

5. The Role of Blue Sea Lighting

Blue Sea Lighting has long been at the forefront of professional stage technology. By offering robust, innovative solutions, they ensure stage professionals can count on both safety and efficiency. Their expertise goes beyond products, offering holistic solutions for planning, integration, and long-term performance stability.

6. Best Practices for Stage Power Distribution

• Calculate Load Accurately: Always total the wattage of connected devices and plan circuits with a 20–30% safety margin.

• Use Proper Cabling: Ensure cables are rated for the load and length of the run.

• Label Circuits Clearly: Mark each output for fast troubleshooting during live events.

• Regular Maintenance: Inspect cables, breakers, and connectors for wear and tear before every show.

• Plan for Redundancy: Backup power and secondary circuits prevent catastrophic failure.




7. Future Trends in Power Distribution

• Smart Monitoring Systems: Real-time load tracking and automated alerts for overloads.

• Wireless Integration: Remote monitoring and control for large-scale venues.

• Eco-Friendly Materials: Sustainable manufacturing and energy-efficient components.

• Hybrid Connectors: Merging multi-core technology with advanced circuit control.

The future of power distribution lies not just in handling bigger loads, but in smarter, safer, and greener solutions.

Conclusion

Stage power distribution may not be glamorous, but it is the unsung hero of live performances. By combining reliable circuit separation, multi-core efficiency, and flexible outputs, event professionals can ensure every show runs without a hitch.

Solutions like the Power Box 4x 220V 19pin Socapex Output and the 12x20A Edison Power Distributor Box ， supported by Blue Sea Lighting represent the future of safe and efficient stage power management.

With the right tools and practices, stage power distribution becomes not just a technical necessity, but a foundation for creativity and excellence.
