1) Why Walls Matter: From Backdrops to Storytellers

For most of architectural and stage history, walls were treated as passive boundaries—surfaces that enclosed, separated, or supported. Lighting, meanwhile, was functional: enough brightness to see and to work safely. In the last two decades, however, LEDs, digital controls, and color-mixing breakthroughs have turned walls into active storytellers. Today a façade can celebrate city festivals, a museum can guide visitors with gentle gradients, and a theater can transform a simple cyclorama into a living scene. The wall, once mute, now speaks through light.

What changed is not only the light source but also our understanding of human perception. We respond to color temperature shifts, edge contrast, and motion cues at a pre-verbal level. A cool, even wash makes stone feel crisp and modern; a warm gradient makes brick feel welcoming; a slow pixel ripple implies life and breath. Before you choose a fixture, it helps to understand how light and the brain collaborate to make walls “come alive.”

2) The Perception Playbook: Color, Contrast, and Movement

Color temperature signals meaning. Warm whites (e.g., 2700–3200 K) suggest coziness and heritage; neutral whites (4000–4500 K) read “honest” and functional; cool whites (5600–6500 K) feel clean and futuristic. When you add saturated colors, hue psychology joins the party: blues soothe, reds energize, greens balance, ambers flatter skin tones, and UV reveals fluorescence and mystery.

Contrast and gradient are how we sculpt depth. A flat, uniform wash is appropriate for wayfinding or “museum-quiet” spaces, but walls look more dimensional when we establish soft falloff, emphasize vertical texture, or introduce a directional cue. Finally, kinetic patterns—even very slow ones—trick the eye into sensing vitality. Pixel-mapped ripples, subtle chases, or breathing fades can animate large expanses without becoming intrusive.

3) What Is Wall Washing vs. Wall Grazing?

These two cousins often get conflated. Wall washing aims for even luminance across the surface, smoothing imperfections and emphasizing form over texture. It uses wider beam angles and is typically positioned farther from the wall. Wall grazing skims light at a steep angle with tighter optics to pull out relief—think of raking light across brick to reveal its tooth. Knowing which effect you want determines beam angle, setback, mounting height, and lensing.

4) The LED Leap: Why Solid-State Rules the Night

LEDs brought three revolutions at once: efficiency, controllability, and miniaturization. High luminous efficacy lowers power and heat; precise electronic control makes dimming smooth and repeatable; small emitters permit compact optics and pixel density. Add long lifetime and robust housings, and LEDs become ideal for both permanent façades and touring rigs.

But not all LED engines are equal. Traditional RGB struggled with pastel fidelity and warm whites. That’s where RGBWA+UV comes in.

5) RGBWA+UV 6-in-1: Beyond Rainbow to Realism

An RGB engine creates millions of hues, but it can leave gaps—especially in amber-rich flesh tones and convincing whites. RGBWA+UV adds white for true tints, amber for sunlight warmth and golds, and UV for blacklight effects and fluorescent pops. The result is both expressive and accurate:

• R (red), G (green), B (blue): saturated primaries, vivid color mixing.

• W (white): clean tints, natural whites, desaturation without muddiness.

• A (amber): rich warm tones, sunset ambers, improved skin rendering.

• UV (ultraviolet): theatrical accents, fluorescence, and a sense of depth.

For designers, RGBWA+UV means fewer compromises. You can run a stately, high-CRI warm white for hospitality, snap to a festival colorway for city events, then add a UV moment for an art opening—all from the same bar.

6) Pixel-Level Control: When Every LED Becomes a Brush

In a pixel-addressable fixture, each emitter (or small group) can be controlled independently. Map those pixels in your console or media server and a simple light bar becomes a low-resolution display. The creative dividends are enormous:

• Subtle motion: breathing, shimmering, or tide-like flows that “wake” a wall.

• Directional cues: chases that guide foot traffic or point toward entrances.

• Data-driven art: tie lighting to music tempo, local weather, or audience inputs.

• Brand moments: gentle reveals, color wipes, or gradients that echo logos.

Pixel control is most powerful when used with restraint. A façade that thrums quietly at 10% brightness can feel more alive—and more premium—than a wall shouting at full blast.

7) DMX, RDM, and Modern Control Workflows

Professional systems typically speak DMX512, with RDM for remote configuration. Many outdoor bars also support art-net or sACN over Ethernet, helpful for large pixel counts. Wireless options reduce cabling in heritage sites or temporary events, though careful planning (line of sight, channel management, and redundancy) keeps shows rock-solid.

A simple but effective pipeline looks like this:
console/media server → network node → DMX universes → pixel bars.
Use show files with documented patch sheets and version control; label cables; and pre-visualize pixel maps to save precious on-site hours.

8) Optics and Beam Angles: Painting with Photons

Beam angle determines coverage and visual intent:

• Narrow (10–20°): long throws, punchy grazing, strong texture.

• Medium (25–40°): balanced wash/graze hybrids, versatile for mixed programs.

• Wide (45–60°+): even wash for signage, galleries, and large façades.

Lenses, diffusers, and asymmetric optics further tailor distribution. For tall walls, asymmetry helps keep the top from blowing out and the bottom from falling dark. For curved surfaces, combine multiple angles to maintain uniformity without hot spots.

9) Mounting Geometry: Setback, Height, and Repeat

A classic starting recipe for even washing is setback ≈ 1/3–1/2 of wall height, with fixtures spaced such that beam edges kiss without scalloping. For grazing, move closer (even within 0.3–0.5 m for coarse stone) and aim almost parallel to the surface. Always mock up one bay at night: a single real-world test can save days of CAD iterations.

10) Outdoor Reliability: IP Ratings, Thermal Paths, and Power

Because façades live outdoors, IP65+ weather sealing, UV-resistant housings, and robust cable glands are essential. Thermal design matters too: efficient heat sinking extends LED life and preserves color balance over time. For power, plan trunk lines and local spurs with voltage drop in mind; consider power factor correction and surge protection for storm-prone sites.

11) Sustainability and Efficiency: Beauty with a Light Footprint

LED wall washers achieve striking results at a fraction of legacy power. But sustainability also means controls discipline: schedules, astronomical clocks, and occupancy-aware dimming. Thoughtful night-time light levels reduce skyglow and respect ecology while still delivering legible, beautiful architecture.

12) A Recommended Workhorse for Real Projects

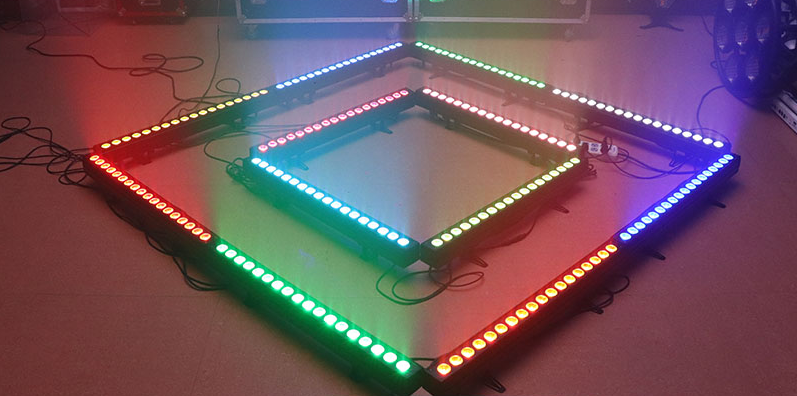

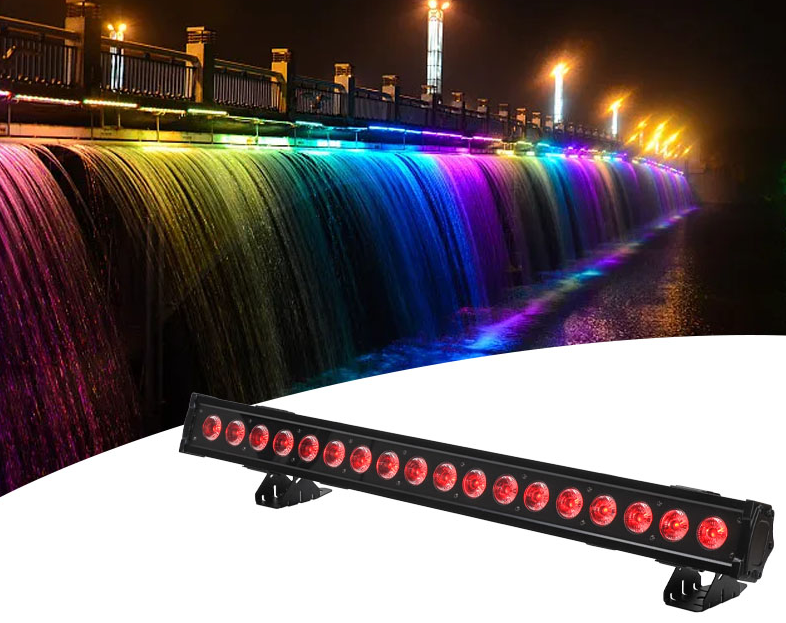

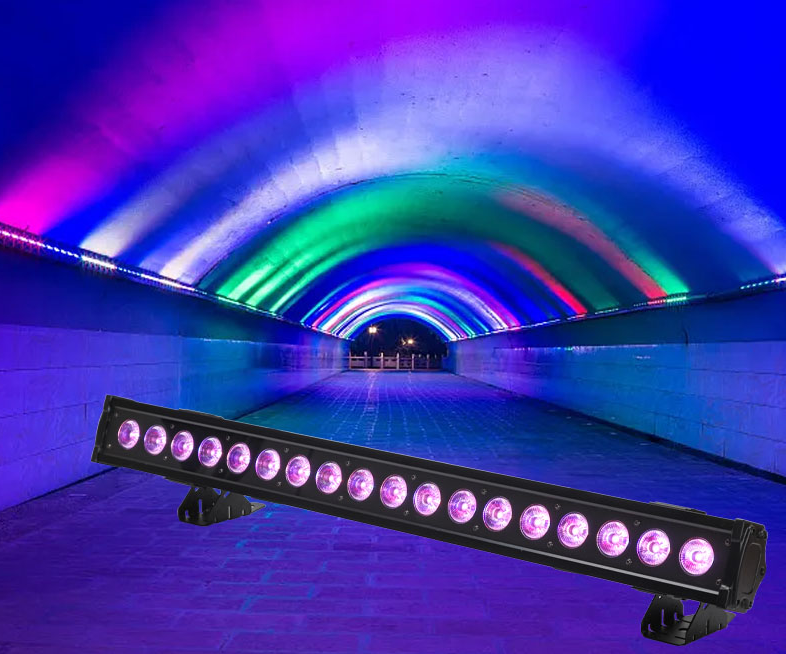

When design moves from mood board to site plan, the right fixture simplifies everything. A proven, versatile choice is the Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer from Blue Sea Lighting. With eighteen 18 W RGBWA+UV emitters, pixel-level control, outdoor-ready construction, and multiple control modes, it brings both finesse and muscle. Whether your canvas is a 40-meter stone façade or a festival stage backdrop, this unit’s combination of punch, color fidelity, and mapping flexibility makes it a dependable backbone for creative programs.

13) Use Cases: How Walls “Wake Up” in the Real World

Civic Façades: A city hall cycles gentle warm whites on weekdays, shifts to national colors on holidays, and features artist-designed animations for cultural nights. Pixel bars deliver smooth motion that reads clearly from blocks away.

Hotels & Retail: A boutique hotel uses evening ambers to invite, then cool late-night tones for a calm, upscale vibe. A flagship store pairs UV accents with neon graphics for new-product drops, creating social-media-ready moments.

Museums & Galleries: Curators favor quiet light that honors artworks; with RGBWA+UV engines, wall bars serve high-CRI whites most days yet pivot to immersive event scenes after hours—no fixture swap required.

Performance Venues: Theaters turn their back walls into kinetic scenery. Subtle pixel patterns enhance musical phrasing; bold wipes punctuate dramatic cues; UV reveals surprises in costumes or set paint.

Public Art: Artists treat entire buildings as canvases. Data-driven pieces respond to weather or community inputs. Because bars are modular and outdoor-rated, installations remain maintainable long-term.

14) The Design Process: From Intent to Patch Sheet

1. Define the story: What should the wall communicate at noon, at sunset, and at midnight?

2. Choose effects: Wash vs. graze; static vs. kinetic; color families and transitions.

3. Survey the site: Measure throws, sightlines, power access, and mounting constraints.

4. Fixture selection: Output, optics, pixel density, environmental rating.

5. Mockup: Night-time trials validate aim angles, beam overlap, and dimming curves.

6. Controls design: Universe counts, IP addressing, network topology, show logic.

7. Documentation: Patch lists, cabling diagrams, schedules, and maintenance plans.

8. Commissioning: Calibrate whites, limit maximum levels, record presets.

9. Handover: Train staff, leave a fallback cue stack, and schedule periodic checks.

15) Common Pitfalls—and How to Avoid Them

• Hot spots & scallops: Fix with spacing, lensing, or asymmetrical optics.

• Color mismatch between batches: Keep a spares strategy and batch tracking.

• Over-animation: Let architecture breathe; keep motion slow and purposeful.

• Glare & light trespass: Add louvers/visors, aim carefully, and set curfews.

• Underpowered runs: Calculate lumen needs for wet surfaces and light pollution.

• Complexity without backup: Pre-program “safe modes” that look good even if networks hiccup.

16) Pixel Mapping Essentials: Make Motion Meaningful

Use low-frequency motion for premium atmospheres; reserve faster chases for celebratory moments. Align movement with architectural axes so effects feel native to the building. For long façades, group pixels into zones for hierarchical control—global mood on one layer, local accents on another. And always verify that gradients remain smooth at the viewer’s typical distances.

17) Photometrics in Plain Language

Designers often ask: “How bright is bright enough?” Translate lumens and candela into lux at the wall. For many façades, 50–150 lux feels lively without glare; heritage stone may look best even lower. Wet surfaces can read darker, so hold some headroom. With eighteen 18 W emitters, a bar like the Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer provides ample punch for mid-to-long throws, especially when narrow optics are specified for grazing.

18) Integration with Media and Sound

Modern show control lets light converse with audio and video. Timecode locks lighting to music cues; OSC and MIDI let interactive exhibits trigger pixel ripples. On civic sites, tie color themes to calendar events; for sports venues, link team colors to game nights. The key is consistency—define palettes and motion rules so your wall feels curated, not random.

19) Maintenance and Lifecycle Planning

Outdoor systems last longer when treated as infrastructure: plan accessible mounting, drainage paths, and service clearances; keep a spares cabinet with matched LED engines, power supplies, and data injectors; document firmware versions; and schedule annual cleaning to remove dust films that dull output. Good maintenance keeps color consistency tight and preserves the design’s intent.

20) Safety, Codes, and Community

Comply with local codes on electric runs, structural anchoring, and nighttime luminance. In residential contexts, limit spill light and motion intensity after certain hours. When projects engage communities—festivals, memorials, cultural dates—lighting becomes a civic language. Thoughtful programming fosters pride while respecting neighbors and ecosystems.

21) Budgeting and ROI: The Case for Quality

A quality bar with robust optics and pixels might cost more upfront but saves later through lower power, fewer truck rolls, and creative flexibility that sustains relevance for years. Because content and palettes can be updated seasonally, one installation can support many campaigns—turning capital expenditure into media value.

22) Putting It All Together: A Sample Scenario

A museum wants its blank, light-gray façade to feel alive at night without overshadowing exhibitions inside. The design team chooses a medium wash for most evenings: a warm white base with slow amber “breaths.” On event nights they map gentle color waves keyed to exhibit themes; for family programs, a brief UV moment makes signage fluoresce, delighting kids. Hardware: a row of pixel bars at 1.2× fixture spacing, medium lenses, and visors to cut glare toward residences. Controls: two universes of DMX via sACN node, with an astronomical clock and three locked presets. After commissioning, staff operate a simple touch panel with “Weeknight,” “Event,” and “Quiet” buttons. The wall now feels like part of the museum’s voice.

23) The Best Next Step

If you’re ready to test ideas on your own wall, start with a mockup using a capable, outdoor-rated RGBWA+UV bar. The Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer from Blue Sea Lighting is purpose-built for exactly this: strong output, refined color, pixel mapping, weather resistance, and control flexibility. It is a practical, future-proof foundation for façades, stages, civic landmarks, and touring events alike.

24) Conclusion: When Walls Breathe, Places Belong

Places feel memorable when their largest surfaces participate in the story. Modern lighting—especially RGBWA+UV engines with pixel control—gives designers the vocabulary to make walls breathe, nod, and glow with meaning. Balance restraint with moments of joy; pair responsible night levels with expressive palettes; and choose hardware that makes both artistry and uptime easy. With thoughtful design and dependable tools like the Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer, supported by Blue Sea Lighting, you can turn any façade from background into a living presence—welcoming guests, guiding communities, and celebrating identity night after night.
