This article explores how modern lighting consoles can seamlessly collaborate with sound systems using protocols like DMX, MIDI, and timecode, while recommending two advanced outdoor lighting products from Blue Sea Lighting.
Introduction: The Power of Synchronization
Modern live performances demand more than just excellent lighting or crystal-clear sound—they require perfect synchronization between both. Whether it’s a concert, outdoor event, or theater show, the immersive experience comes from audio and visual synergy. This article explores how lighting consoles can work hand-in-hand with sound systems, from control protocols to recommended equipment.
1. Why Synchronization Matters
When lighting cues and sound beats are aligned:
Impact is magnified during musical drops or dialogue.
Transitions become seamless, enhancing storytelling.
Show operation is streamlined, especially in programmed events.
This integration depends on both technology and equipment compatibility.
2. Core Synchronization Technologies
a. DMX512 Protocol
DMX (Digital Multiplex) is the backbone of modern lighting control. While primarily used for lights, DMX can be integrated with audio mixers or playback software to achieve automation:
Sound triggers DMX signals to cue lights.
Lighting consoles can respond to external input through DMX-in.
b. MIDI (Musical Instrument Digital Interface)
MIDI is commonly used in music production, but is now a powerful cross-system trigger:
Lighting cues can be triggered from digital audio workstations (DAWs) like Ableton Live.
Consoles receive MIDI notes to cue specific scenes or effects.
c. Timecode (SMPTE & MTC)
For large productions, timecode ensures precise coordination:
SMPTE or MIDI Timecode (MTC) timestamps sync audio and lighting cues to exact moments.
Ideal for pre-recorded music, theatrical acts, or fireworks displays.
3. Setup Methods for Integration
Method
Complexity
Best For
Manual Cue Button
Low
Simple live shows
MIDI Triggering
Medium
DJ sets, electronic performances
Timecode Programming
High
Concert tours, musicals
You may need interfaces or converters to bridge lighting and sound software. Most modern consoles like GrandMA3, Avolites Titan, or Chamsys support multi-protocol input.
4. Choosing the Right Lighting Products for Audio Sync

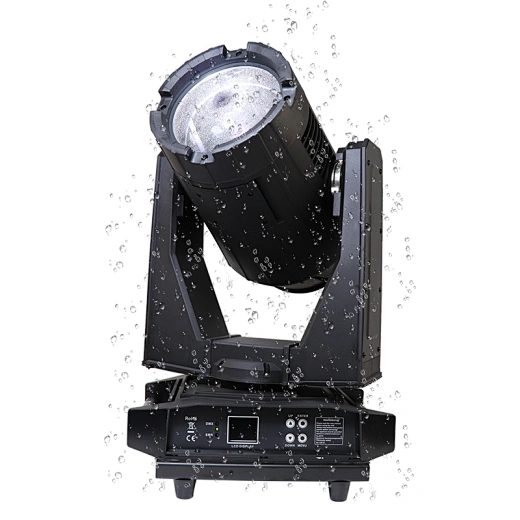

Two outdoor lighting fixtures stand out from Blue Sea Lighting for synchronized stage performances:
DMX/WiFi connectivity: Enables fast response to sound signals in real-time.

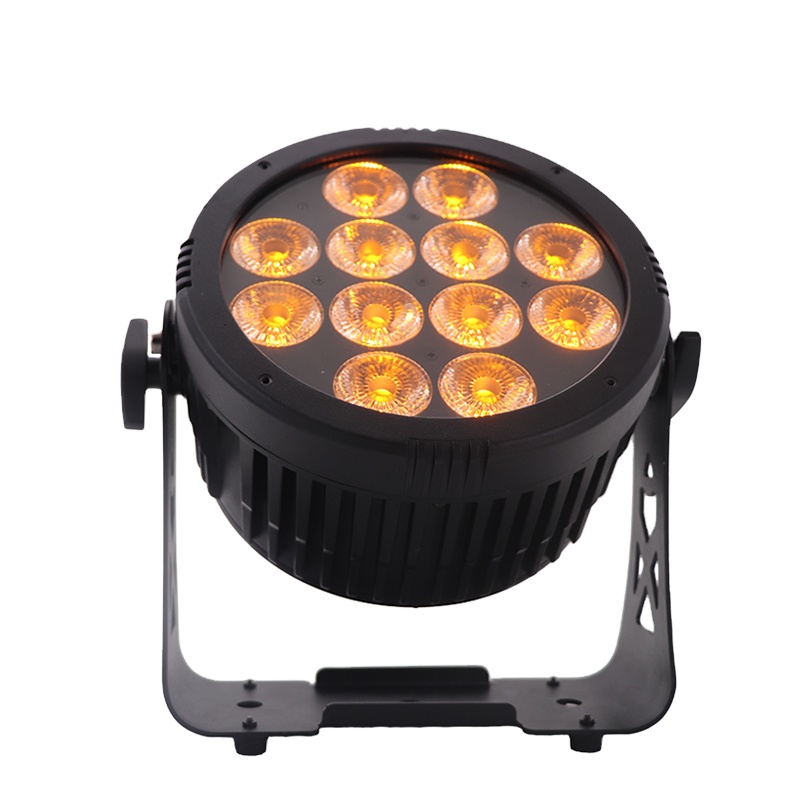

Use Case: For ambient effects or accent lighting, this fixture changes color or intensity in sync with sound crescendos or ambient scores.
5. Application Scenarios
a. Outdoor Concerts & Festivals
Use timecode to sync fireworks, moving lights, and live music.
Deploy battery-powered uplights across the site for ambient music-reactive lighting.
b. Theatrical Shows
Trigger cues based on voiceover or musical cues using SMPTE timecode.
Moving heads spotlight characters during dramatic moments.
c. Corporate or Campus Events
Use MIDI triggers from laptops running DJ or VJ software.
Combine sound effects with flashing uplights to create interactive segments.
6. Tips for Seamless Integration
Pre-program Cue Lists: Define lighting cues in relation to the audio timeline.
Test Signal Latency: Delay or jitter can affect synchronization.
Use Reliable Equipment: DMX splitters, MIDI interfaces, and proper shielding ensure stable communication.
Backup Plans: Always have manual override or a secondary cue path.
Conclusion
Synchronizing lighting consoles with sound systems elevates the audience experience from good to unforgettable. Whether you're running a stadium tour or a small school event, the key is choosing lighting fixtures and control methods that support dynamic, audio-responsive creativity.
