Introduction: Why Stage Lighting Is No Longer “Just Illumination”

The modern audience expects more than visibility—they expect emotion, narrative, and immersive atmosphere. Lighting is no longer the backstage tool that quietly supports performers; it is now a lead visual language that shapes how every scene is perceived. Whether you are producing a concert, a corporate launch, a theater show, a nightclub set, or a livestream studio performance, your lighting choices decide the tone: thrilling or intimate, futuristic or nostalgic, explosive or gentle.

For years, many lighting systems relied on specialized fixtures—beam lights for sharp aerial looks, wash lights for stage coverage, and pixel bars for dynamic pattern effects. That approach works, but it often becomes expensive, time-consuming to program, and heavy on logistics. Today, however, the industry is shifting toward a new priority: multi-function fixtures that reduce rigging complexity while expanding creative potential.

So how can one fixture transition from a tight beam to a smooth wash and simultaneously deliver pixel-style segment control? What technologies make that possible? And why are lighting designers increasingly choosing hybrid solutions for tours, events, and fixed installations?

This article explores the science, creativity, and practical benefits behind a new lighting trend—beam-to-wash versatility, powered by zoom optics, pixel segmentation, smooth motors, and intelligent control.

1. Understanding the Two Worlds: Beam vs. Wash

Before we explain how one fixture can do both, it helps to define the difference between beam and wash.

Beam Lighting: Precision and Drama

Beam fixtures produce a narrow, intense, highly collimated light column. This creates:

• Strong aerial effects (visible shafts in haze)

• Long-throw brightness

• Crisp movement and dramatic “laser-like” visuals

• Focused accents on stage or audience

A tight beam is often used for “impact moments”: beat drops, climaxes, transitions, or big reveals. The smaller the beam angle, the more concentrated the light, meaning it cuts through haze and delivers sharp aerial definition.

Wash Lighting: Coverage and Atmosphere

Wash fixtures provide wide, even distribution. This creates:

• Smooth color coverage across stage surfaces

• Background ambience and scenic washes

• Soft light that blends well with cameras

• Comfortable illumination for performers

Wash lighting is essential for creating mood—warm romantic tones, cool futuristic palettes, sunset gradients, and cinematic atmosphere.

Traditionally, designers needed separate fixture types to handle these tasks. But modern design demands faster transitions, smaller rigs, and more dynamic visuals—hence the rise of beam-to-wash fixtures with zoom capability.

2. The Key Technology: Zoom Optics and Why It Changes Everything

The heart of beam-to-wash versatility is the zoom system. In simple terms, zoom allows a fixture to change its beam angle—shifting the light output from narrow to wide without changing fixtures.

A zoom range like 3.5°–35° is particularly powerful because it covers two extremes:

• Around 3.5° delivers a tight beam for aerial looks

• Around 35° creates a wide wash suitable for stage coverage

This means the same fixture can:

• Produce thin, dramatic shafts for concert moments

• Expand into a wide, smooth wash for scenic atmosphere

• Transition dynamically during cues (imagine a beam that “blooms” into a wash)

This single capability transforms programming flexibility. Designers can think in motion: a narrow column becomes a wide aura, supporting storytelling rather than static looks.

3. Pixel Segmentation: Turning a Light into a Moving Visual Surface

Now let’s add another concept: pixel control.

Pixel segmentation means the fixture’s LED sources can be controlled individually or in sections. Instead of treating the light as one uniform output, you can create:

• Color chases that run across segments

• Multi-color gradients within one fixture

• Pulse effects and rhythmic movement synced to music

• Pixel strobe bursts that look like visual “beats”

This is why pixel fixtures have become popular in clubs, concerts, and modern stage design—they behave like both lighting and a visual screen, but with true light output rather than video pixels.

Combining pixel segmentation with zoom adds a new dimension:
You can create segmented beams and washes, with multiple colors simultaneously, all within one fixture.

4. Motion Matters: Why Smooth Pan/Tilt Defines Professional Output

A multi-function fixture must not only change beam angle and color—it must move gracefully. Professional stage design requires pan and tilt motion that is:

• Fast enough for dynamic looks

• Smooth enough for theater and broadcast

• Quiet enough for studios and acoustic venues

A typical professional range such as 540° pan and 270° tilt supports wide coverage and creative aerial patterns. But motion quality isn’t only about range—it’s about motor precision and noise.

High-precision, ultra-quiet motors ensure:

• Clean movement in livestream environments

• No vibration artifacts on camera

• Smooth tracking for theatrical scenes

• Professional reliability for touring

In modern productions where audio pickup is sensitive, silent movement becomes a major advantage.

5. The Importance of Dimming and Strobe in Atmosphere Creation

Atmosphere is not only about color. It is also about intensity transitions and rhythm.

High-Resolution Dimming

A 16-bit dimming curve allows extremely smooth fades. This matters because:

• Theater scenes need subtle transitions without stepping

• Broadcast cameras reveal flicker and uneven dimming

• Corporate events demand elegant looks rather than harsh changes

Fast Strobe

A strobe up to 20Hz enables high-energy moments:

• EDM drops

• Rock concert hits

• Dramatic scene flashes

• “Freeze-frame” audience reactions

When combined with pixel segmentation, strobe becomes even more creative, allowing segmented strobe patterns and rhythmic bursts.

6. Control Protocols: DMX, RDM, and Why They Matter

Advanced fixtures depend on professional control standards. Most designers rely on DMX512 for basic programming, but modern workflows also value RDM (Remote Device Management).

With RDM, technicians can:

• Detect fixtures remotely

• Change addresses without climbing truss

• Check status information

• Improve troubleshooting speed

Additionally, fixtures that support software upgrades are future-proof. This means the product can evolve, adding features, improving dimming curves, or refining control behavior—extending its lifespan and value.

7. Reliability in Real Use: Thermal Management and Protection

Powerful LED fixtures generate heat. Long shows, festival environments, and high-output operation require intelligent thermal design.

A reliable fixture often includes:

• Real-time temperature monitoring

• Automatic overheat protection

• Smart cooling systems

• Stable output that resists heat-related dimming drop

This ensures consistent performance on tour and in permanent installations.

8. One Fixture, Many Venues: Where Beam-to-Wash Pixel Bars Shine

Now let’s talk about where this technology makes the biggest difference.

Concerts and Touring

Touring needs flexibility. Beam-to-wash pixel fixtures reduce the total number of fixture types on a rig, simplifying transport and programming.

Corporate Events and Product Launches

Corporate stages require both sharp highlights and smooth ambient washes. Being able to switch quickly between both looks is extremely valuable for fast cue transitions.

Nightclubs and Bars

Pixel segmentation and strobe effects build rhythm and energy, while the wash function ensures coverage for the dancefloor and DJ booth.

Theater and Immersive Shows

Theater requires smooth dimming, quiet motors, and flexible beam shaping for storytelling transitions.

Livestream and XR Studios

Broadcast environments require flicker-free output, smooth transitions, and compact rigs. Multi-function fixtures reduce setup complexity.

9. Recommended Product Solution by Blue Sea Lighting

If you are looking for a single fixture that combines:

• Pixel segmentation

• Wide zoom range (beam to wash)

• Smooth pan/tilt

• Professional control (DMX512 + RDM)

• High-resolution dimming and fast strobe

• Smart thermal protection

Then this solution from Blue Sea Lighting is designed exactly for that purpose:

✅ Recommended Fixture:

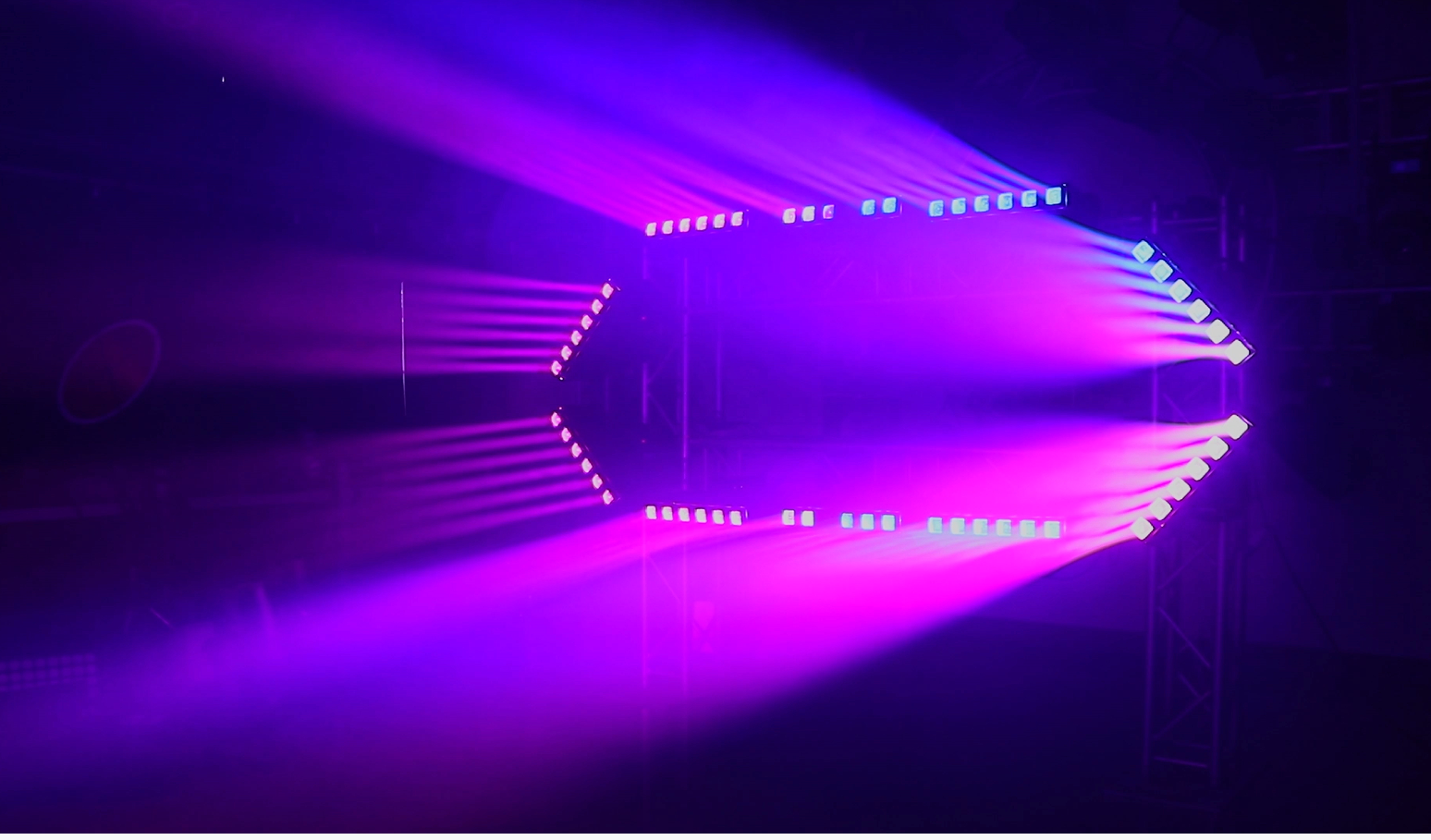

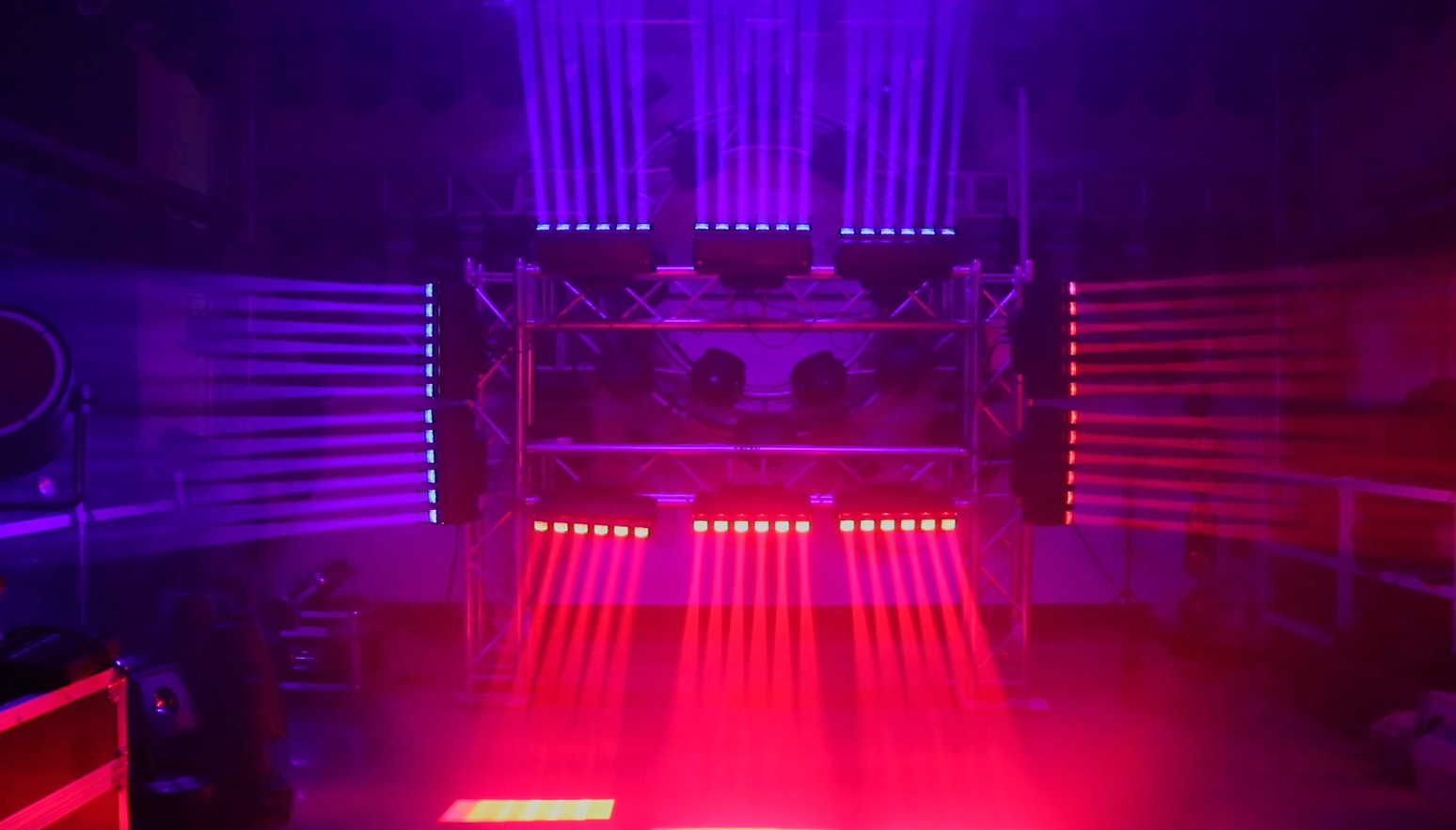

6pcs 40w Zoom Pixel Beam Wash Bar LED Moving Head Light With Base

This fixture delivers:

• 6×40W RGBW LEDs with individual segment control

• 3.5°–35° zoom for tight beam or smooth wash

• 540° pan / 270° tilt with ultra-quiet precision motors

• DMX512 + RDM + software upgrades

• Up to 20Hz strobe and 16-bit dimming

• Real-time temperature monitoring and overheat protection

• 18CH/32CH channel modes for flexible programming

In other words: it is a lighting system that supports both creativity and real-world reliability—ideal for designers who want maximum atmosphere from minimal rigging.

10. Practical Programming Ideas: How to Use Beam-to-Wash Pixel Fixtures Creatively

Here are practical cue concepts that lighting designers often use:

Idea A: “Beam Bloom”

Start narrow (3.5°) during a buildup, then expand into a full wash (35°) at the chorus. The result is a cinematic bloom effect.

Idea B: “Segment Chase”

Use pixel segmentation to run color chases across the bar—great for music-driven events and nightclub energy.

Idea C: “Dual-Mood Transition”

Use tight beam in cool tones for futuristic scenes, then open into warm wash for emotional sections. One fixture, two worlds.

Idea D: “Strobe Pulse Patterns”

Use segmented strobe bursts, alternating segments to create rhythmic visual punctuation without overwhelming the audience.

Conclusion: Why the Future Belongs to Multi-Atmosphere Lighting

Stage lighting is evolving toward efficiency and creativity at the same time. Designers want fewer fixtures but richer looks. Producers want lower logistics costs but higher visual impact. Venues want versatility without constant upgrades.

That is why beam-to-wash pixel systems are no longer niche—they are quickly becoming the new standard for modern productions.

If your goal is to create multiple stage atmospheres with fewer fixtures, faster programming, and stronger visual storytelling, beam-to-wash zoom pixel fixtures represent one of the smartest investments available today—especially when supported by experienced manufacturers like Blue Sea Lighting.
