Whether you're preparing for a high-stakes concert, a corporate presentation, or a theatrical performance, rig stability can make or break the event. Lighting rigs, truss systems, and mounted equipment must be secure, responsive, and safe for both performers and crew.
A pre-show stability test is not just about technical due diligence—it’s about protecting people, gear, and reputation. This article outlines the most reliable practices to ensure your rig performs flawlessly under real-world conditions.
Why Rig Stability Matters
An unstable rig is a silent risk that can manifest in multiple ways:
Safety hazards: Loose fixtures, swaying trusses, or unsecured cabling can fall or fail during a performance.
Technical malfunctions: Unexpected shifts can cause misaligned beams, broken lenses, or interrupted power/data.
Inconsistent visuals: Even slight vibrations can affect precision lighting effects like gobos, pixel chases, or laser alignment.
Show interruptions: Rig collapse or fixture drops often lead to complete cancellations or reputational damage.
Pre-show rig testing is your best defense against these high-cost failures.
Step 1: Perform a Ground-Level Physical Check

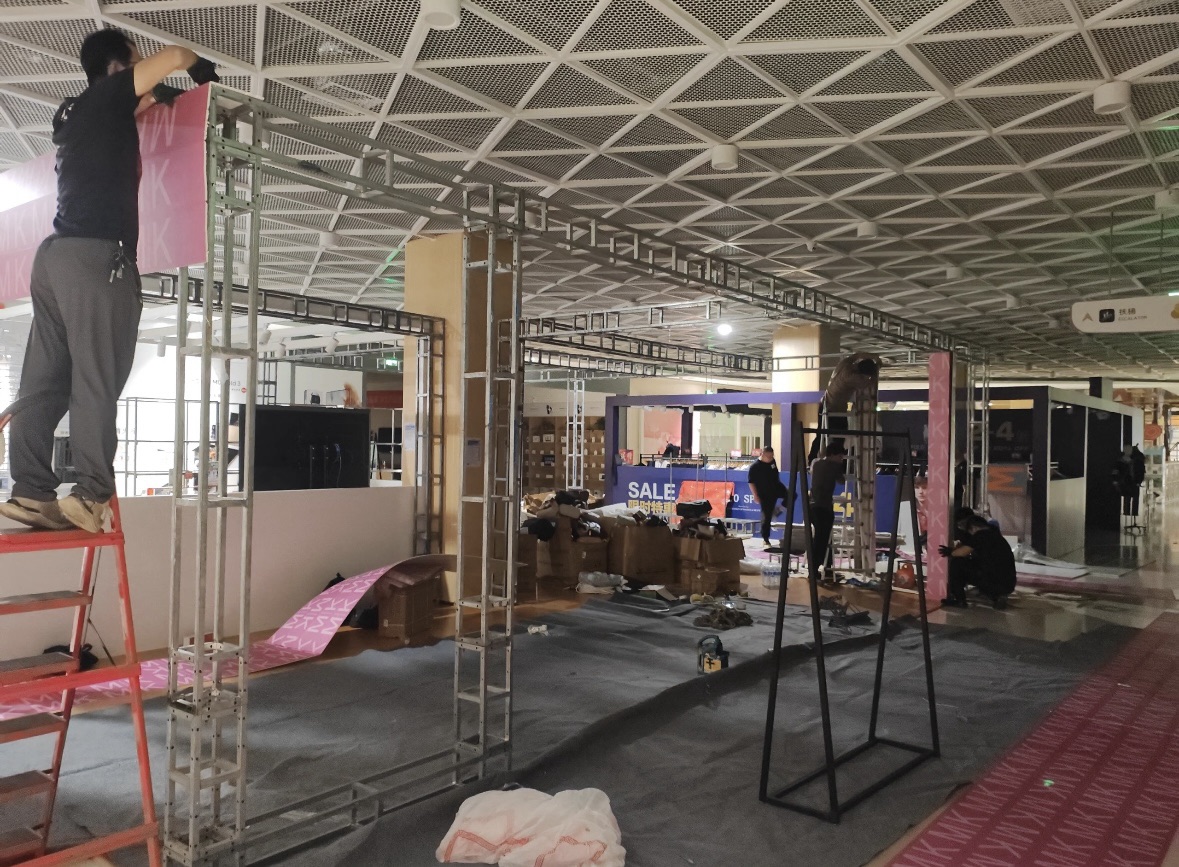

Before anything is flown, begin with a floor-level inspection. Check every truss, baseplate, coupler, and clamp.
Ensure all bolts are fully tightened and torque-checked.
Look for signs of fatigue or metal deformation on rigging components.
Check clamps and hanging points for appropriate weight ratings.
Inspect chain hoists or winch systems for smooth mechanical motion.
Confirm that safety cables are present and correctly looped.
The goal here is to confirm that nothing will fail mechanically once lifted.
Step 2: Test Load Distribution
Weight imbalance is a major contributor to rig instability. Even if individual units are secured, uneven distribution can cause trusses to tilt or stress load points.
Weigh fixtures if possible and simulate total distributed load.
Place heavier fixtures (e.g., strobes, moving heads) closer to anchor points.
Maintain even lateral symmetry when mounting along the truss.
Use cable management to prevent sagging or tension on connectors.
Modern venues may also use load cells to digitally monitor weight at lift points — a best practice in large productions.
Step 3: Conduct a Controlled Lift
With crew members on alert and emergency tools nearby, initiate a slow, stepwise lift of the rig.
Observe any sway, pitch, or bending in real time.
Check motor brakes and manual hoists for synchronized operation.
Pause at intervals to inspect tension on all chains or steel cables.
Use spirit levels to detect horizontal deviation.
This test should take place at 50% of final height, long enough to simulate mid-show stress but easy to reverse in case of failure.
Step 4: Simulate Full Show Conditions
Once the rig is flown, replicate show conditions as closely as possible before the audience arrives.
Run full DMX programming: Trigger all fixture movement, colors, strobes, and zoom effects.
Activate sound systems: Bass vibrations can affect rig stability.
Check power draw: Monitor thermal load on cables and connectors under full intensity.
During this simulation, crew should observe:
Shifts in fixture alignment
Visible truss vibration
Any audible mechanical stress (rattling, creaks)
This is also the time to record cue timings and make last-minute trim height adjustments.
Step 5: Safety Checks & Crew Sign-Off
After testing, a final sign-off should be conducted by the department heads (lighting, rigging, safety).
Confirm that all fixtures are redundantly secured (main clamp + safety wire).
Tag any gear that failed or was modified during testing.
Document rig height, load weights, fixture map, and power plan.
Store all documentation with your production manager or safety officer.
This final layer ensures accountability and is often required by venue policies or insurance regulations.
Additional Risk Considerations
| Risk Type | Typical Oversight | Mitigation Strategy |
|---|---|---|
| High wind (outdoor) | No ballast or guy lines on base truss | Secure outriggers and tie-downs |
| Uneven flooring | Unleveled truss towers | Use shims or leveling base plates |
| Shared rigging load | Audio or set truss on same fly line | Isolate structural support per subsystem |
| Rented equipment | Worn or misclassified clamps | Always re-inspect and log gear condition |
Case Example: Touring Festival Deployment
In a summer touring festival across multiple outdoor stages, a production company noticed fixture angles shifting mid-performance. After revisiting their load map and introducing weight simulation in pre-show tests, the team caught a 12kg imbalance due to a late fixture swap.
By adding a ballast and shifting a wash light inward, they restored equilibrium — preventing a potential show delay and equipment damage.
This real-world scenario illustrates the importance of structured testing, especially in high-tempo, repeat-deployment situations.
Pro Tips from Road Crew Veterans
“If the rig doesn’t move when the bass hits, you’re doing it right.”
“Always test with your worst-case programming — not your safest cue.”
“Two clamps and a safety cable aren’t optional; they’re minimum.”
“Use colored tape on chain links — easy visual check of travel distance.”
“Never trust the venue’s previous rigging unless you reverify it.”
